MC33PT2001MAER2 - NXP

Description: Driver 12-OUT High and Low Side 64-Pin HLQFP EP T/R

Download MC33PT2001MAER2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC33PT2001MAER2 - NXP - PCB symbol
click to zoom
PCB Footprints

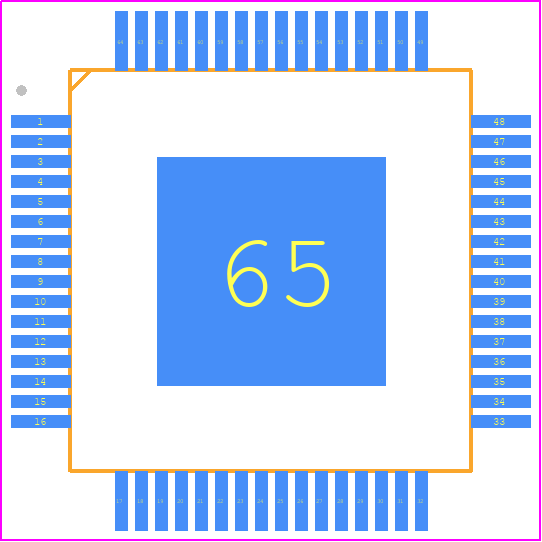

MC33PT2001MAER2 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - MC33PT2001
click to zoom
3D Models
MC33PT2001MAER2 - NXP - 3D model - Quad Flat Packages - MC33PT2001
click to zoom

MC33PT2001MAER2 Details

  • Manufacturer Part Number:

    MC33PT2001MAER2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HLQFP-64

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-05-14

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

MC33PT2001MAER2 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN12213, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MC33PT2001MAER2 has a programmable output voltage setting through the I2C interface. The device can be configured using the NXP-provided software development kit (SDK) or by writing custom code to access the device's registers. The datasheet provides a detailed description of the register map and configuration options.
  • While the datasheet specifies a maximum input voltage of 5.5V, NXP recommends a maximum input voltage of 5.25V to ensure reliable operation and prevent damage to the device. Exceeding this voltage may cause the device to malfunction or fail.
  • The MC33PT2001MAER2 has built-in OCP and SCP features. To implement these features, the device must be configured through the I2C interface to set the current limit and fault detection thresholds. The datasheet provides detailed information on the configuration options and fault detection mechanisms.
  • The thermal derating curve for the MC33PT2001MAER2 is provided in the datasheet. The curve shows the maximum output current reduction as a function of temperature. Engineers should consult the curve to determine the maximum output current at a given temperature to ensure reliable operation and prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33PT2001MAER2 Overview

Use the download button to access the MC33PT2001MAER2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC33P, or try a keyword search, such as MOSFET Drivers
