MC33SA0528AC - NXP

Description: Bus Transceivers Transceiver, DSI3, Dual, Differential, LQFP32

Download MC33SA0528AC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

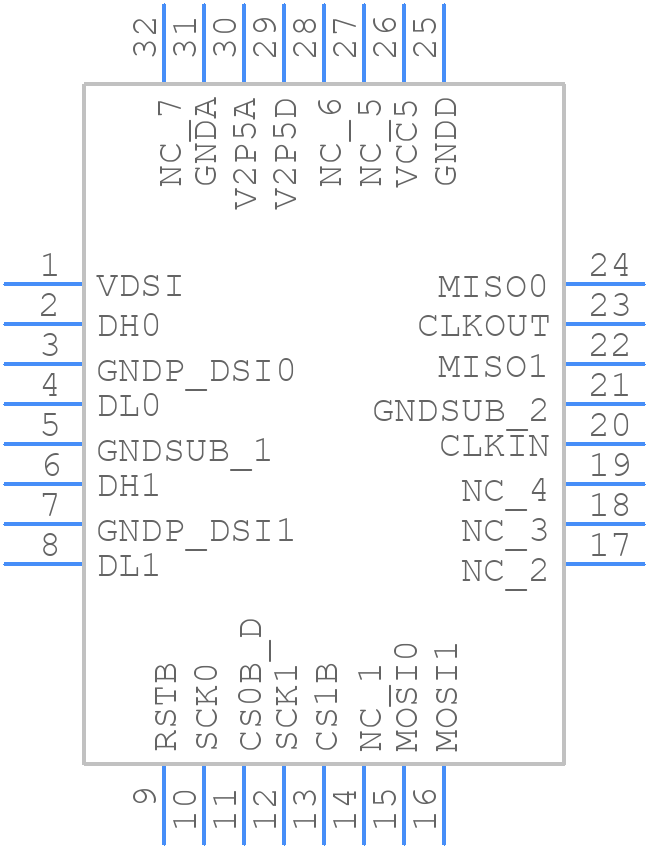

MC33SA0528AC - NXP - PCB symbol
click to zoom
PCB Footprints
MC33SA0528AC - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32
click to zoom
3D Models
MC33SA0528AC - NXP - 3D model - Quad Flat Packages - LQFP32
click to zoom

MC33SA0528AC Details

  • Manufacturer Part Number:

    MC33SA0528AC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-32

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2016-05-04

  • Manufacturer:

    NXP Semiconductors

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.8 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    SMARTMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MC33SA0528AC Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star topology for the power supply connections.
  • Use a high-quality output capacitor (e.g., X5R or X7R) with a minimum capacitance of 10uF and a low ESR. Also, ensure the input capacitor is properly sized and placed close to the device.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • To enter low-power mode, set the EN pin low and ensure the input voltage is below 2.5V. The device will automatically enter shutdown mode, reducing the quiescent current to <1uA.
  • Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the device, and consider using a thermal interface material (TIM) to improve heat transfer.
