MC33SB0400ES - NXP

Description: Motor Cycle Braking Chip Automotive 48-Pin QFN EP Tray

Download MC33SB0400ES Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

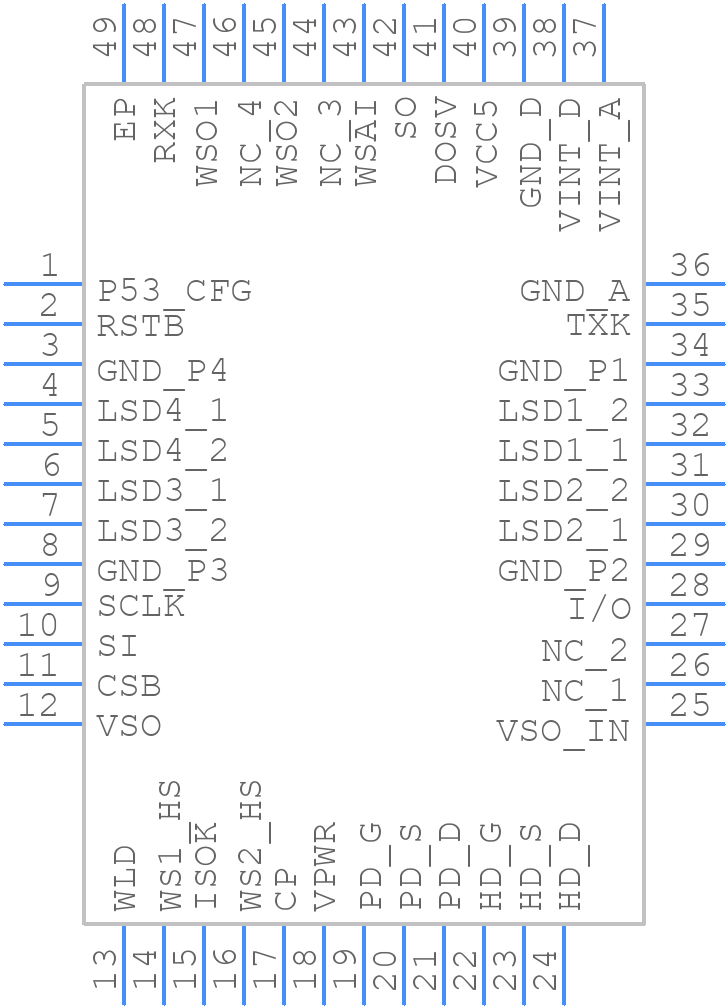

MC33SB0400ES - NXP - PCB symbol
click to zoom
PCB Footprints
MC33SB0400ES - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-pin QFN-EP
click to zoom
3D Models
MC33SB0400ES - NXP - 3D model - Quad Flat No-Lead - 48-pin QFN-EP
click to zoom

MC33SB0400ES Details

  • Manufacturer Part Number:

    MC33SB0400ES

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-48

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC48(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

MC33SB0400ES Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MC33SB0400ES. Ensure a solid ground plane, keep the input and output traces separate, and use a common mode choke to reduce EMI. Refer to NXP's application note AN11558 for a recommended layout.
  • The input capacitor values depend on the input voltage, output voltage, and desired output ripple. A general rule of thumb is to use a 10uF to 22uF ceramic capacitor with a voltage rating of at least 2x the input voltage. Consult the datasheet and NXP's application notes for more information.
  • The MC33SB0400ES is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 105°C to ensure a junction temperature below 150°C.
  • To ensure a stable startup, ensure the input voltage is within the recommended range, and the input capacitor is properly sized. Also, add a soft-start circuit or a ramp-up circuit to the input voltage to prevent inrush currents and voltage spikes.
  • To ensure EMI and EMC compliance, use a common mode choke, add a shield around the device, and keep the input and output traces separate. Also, ensure the PCB layout is optimized for minimal radiation and use EMI filters if necessary. Consult NXP's application notes and the datasheet for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC33SB0400ES Overview

Use the download button to access the MC33SB0400ES schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC33S, or try a keyword search, such as Other Interface ICs
