- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC33SB0401ES
- Part Number MC33SB0401ES
- Manufacturer NXP
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - MC33SB0401ES
- Released Date Jul 12, 2023
- Last Modified Date Jul 13, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
MC33SB0401ES Details
-
Manufacturer Part Number:
MC33SB0401ES
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-48
-
ECCN Code:
EAR99
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
NXP Semiconductors
-
Interface IC Type:
INTERFACE CIRCUIT
-
JESD-30 Code:
S-PQCC-N48
-
JESD-609 Code:
e3
MC33SB0401ES Frequently Asked Questions (FAQs)
-
A good PCB layout is crucial for the MC33SB0401ES. Ensure a solid ground plane, keep the input and output traces separate, and use a common mode choke to reduce EMI. Refer to NXP's application note AN11542 for a recommended layout.
-
The input capacitor values depend on the input voltage, output voltage, and desired output ripple. A general rule of thumb is to use a 10uF to 22uF ceramic capacitor with a voltage rating of at least 2x the input voltage. Consult the datasheet and NXP's application notes for more information.
-
The MC33SB0401ES is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 105°C to ensure the device stays within its thermal specifications.
-
To ensure stability, follow the recommended component values and PCB layout. Additionally, ensure the input and output capacitors are properly decoupled, and the device is operated within its specified input voltage range. Consult the datasheet and application notes for more information.
-
The recommended input voltage range for the MC33SB0401ES is 2.7V to 5.5V. Operating the device within this range ensures optimal performance, efficiency, and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
MC33SB0401ES Overview

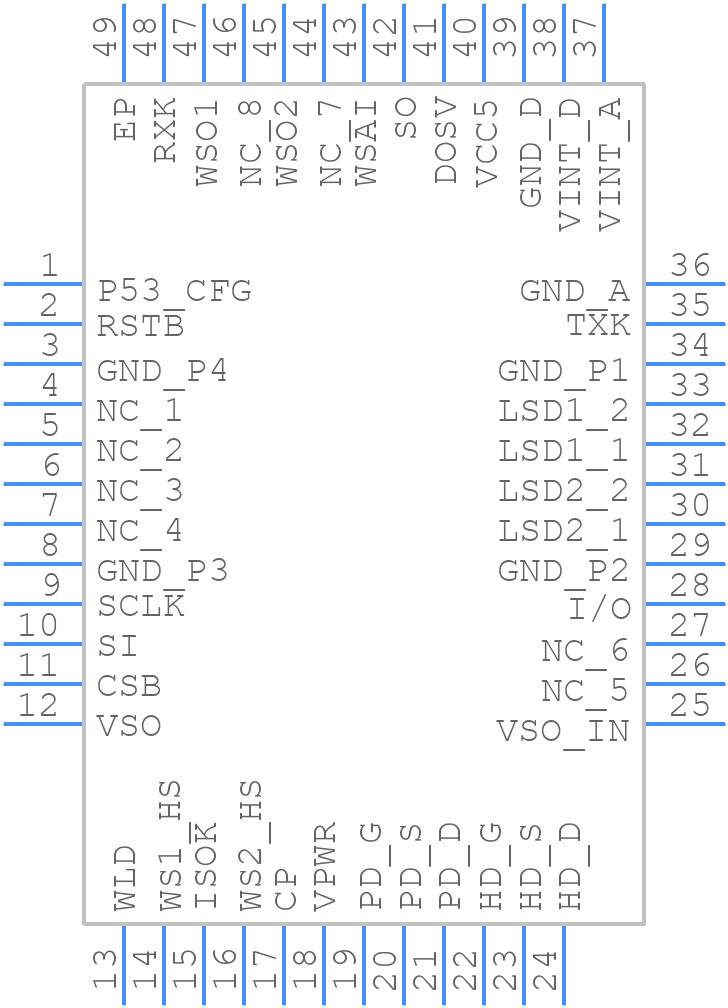

Use the download button to access the MC33SB0401ES schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC33S,
or try a keyword search, such as Other Interface ICs
