TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; SHORTCIRCUIT; OVERLOAD
Driver Number of Bits:
4
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G28
Length:
9.7 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current Flow Direction:
SINK
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP28,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.1 mm
Supply Current-Max:
10 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
5 V
Supply Voltage1-Max:
60 V
Supply Voltage1-Min:
3 V
Supply Voltage1-Nom:
28 V
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Turn-off Time:
58 µs
Turn-on Time:
58 µs
Width:
4.4 mm
MC33XS2410ELR2 Frequently Asked Questions (FAQs)
NXP provides a recommended PCB layout in the application note AN12085, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The MC33XS2410ELR2 has multiple low-power modes, including shutdown, standby, and sleep modes. To configure the device for low-power mode, refer to the device's datasheet and application notes, which provide detailed information on the required register settings and pin configurations.
The MC33XS2410ELR2 is rated for operation from -40°C to 125°C, making it suitable for automotive and industrial applications. However, it's essential to ensure proper thermal management and follow the recommended PCB layout to maintain optimal performance within this temperature range.
Yes, the MC33XS2410ELR2 is not limited to automotive applications. Its features and performance make it suitable for various industrial, consumer, and IoT applications, such as power supplies, motor control, and battery management systems.
To troubleshoot issues with the internal oscillator, refer to the device's datasheet and application notes, which provide guidance on oscillator configuration, frequency selection, and troubleshooting techniques. Additionally, NXP's support resources, such as forums and technical support teams, can provide further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC33XS2410ELR2 Overview

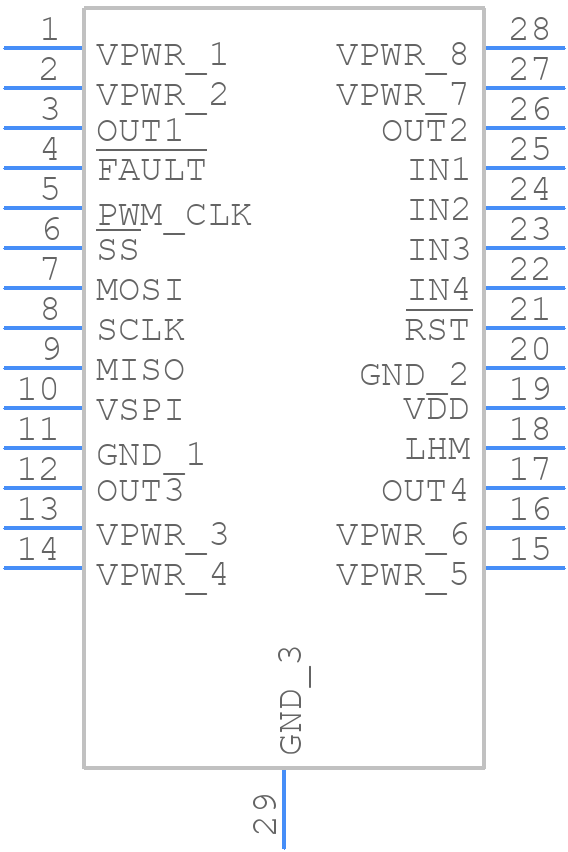

Use the download button to access the MC33XS2410ELR2 schematic symbol, PCB footprint, and 3D model.
