MC34063ABD - STMicroelectronics

Description: DC-DC converter control circuits SO-8

Download MC34063ABD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

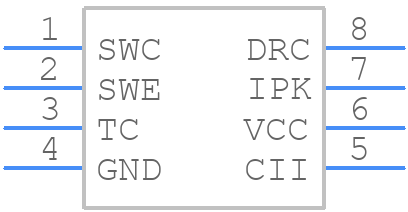

Symbol
MC34063ABD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MC34063ABD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
MC34063ABD - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

MC34063ABD Details

  • Manufacturer Part Number:

    MC34063ABD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Nom:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    100 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MC34063ABD Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the MC34063ABD is 40V, but it's recommended to keep it below 35V for reliable operation.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust it based on the specific requirements of your application.
  • The bootstrap capacitor (CBOOT) is used to provide a high-voltage supply to the internal high-side switch. The recommended value is 10nF to 100nF, but it may need to be adjusted based on the specific requirements of your application, such as the switching frequency and output voltage.
  • To ensure stable operation in a high-temperature environment, make sure to follow the recommended thermal design guidelines, such as using a heat sink, keeping the component away from heat sources, and using a thermally conductive material for the PCB.
  • The maximum output current that the MC34063ABD can handle is 1.5A, but it's recommended to keep it below 1.2A for reliable operation and to avoid overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC34063ABD Overview

Use the download button to access the MC34063ABD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC340, or try a keyword search, such as Switching Regulator or Controllers
