MC34063ABN - STMicroelectronics

Description: DC-DC converter control circuits

Download MC34063ABN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

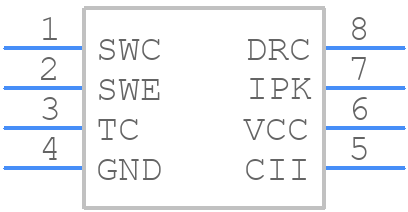

MC34063ABN - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MC34063ABN - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-8-1
click to zoom
3D Models
MC34063ABN - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP-8-1
click to zoom

MC34063ABN Details

  • Manufacturer Part Number:

    MC34063ABN

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.1

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.8 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    100 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC34063ABN Frequently Asked Questions (FAQs)

  • The maximum input voltage is 40V, but it's recommended to keep it below 35V for reliable operation.
  • The inductor value depends on the output voltage, current, and switching frequency. A good starting point is to use the inductor selection guide in the datasheet or online calculators. Typically, a value between 10uH to 100uH is suitable for most applications.
  • The compensation capacitor (Cc) is used to stabilize the voltage regulator. The value of Cc depends on the output voltage, inductor value, and switching frequency. A good starting point is to use the value recommended in the datasheet (typically 10nF to 100nF).
  • The operating frequency range is typically between 100kHz to 500kHz. To ensure the device operates within this range, choose the correct values for the oscillator resistors (Rt and Ct) and the inductor value. The datasheet provides a formula to calculate the oscillator frequency.
  • The maximum output current depends on the input voltage, output voltage, and inductor value. Typically, the MC34063ABN can deliver up to 1.5A, but it's recommended to derate the output current based on the ambient temperature and input voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC34063ABN Overview

Use the download button to access the MC34063ABN schematic symbol, PCB footprint, and 3D model.
