MC34063ACD - STMicroelectronics

Description: DC-DC converter control circuits SO-8

Download MC34063ACD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

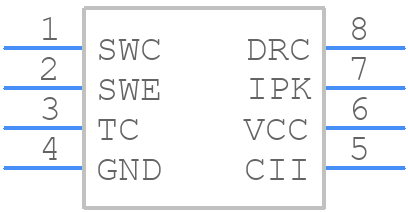

MC34063ACD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MC34063ACD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
MC34063ACD - STMicroelectronics - 3D model - Small Outline Packages - SO-8
click to zoom

MC34063ACD Details

  • Manufacturer Part Number:

    MC34063ACD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Nom:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    100 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MC34063ACD Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the MC34063ACD is 40V, but it's recommended to keep it below 35V for reliable operation.
  • The output voltage of the MC34063ACD can be calculated using the formula: Vout = (R1 / R2) * (Vin - Vsat), where R1 and R2 are the resistors connected to the feedback pin, Vin is the input voltage, and Vsat is the saturation voltage of the internal switch (around 1.5V).
  • The minimum input voltage required for the MC34063ACD to operate is around 3.5V, but it's recommended to keep it above 4.5V for reliable startup and operation.
  • Yes, the MC34063ACD can be used as a boost converter, but it's not optimized for high-power boost applications. It's more suitable for low-power, low-voltage boost applications.
  • The inductor value for the MC34063ACD depends on the input voltage, output voltage, and output current. A good starting point is to use the formula: L = (Vin - Vout) / (f * ΔI), where f is the switching frequency (around 65 kHz for the MC34063ACD) and ΔI is the peak-to-peak inductor current ripple (around 30% of the output current).
