MC34063ACN - STMicroelectronics

Description: MC34063ACN, DC-DC Converter, Step Down, 8-Pin PDIP

Download MC34063ACN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

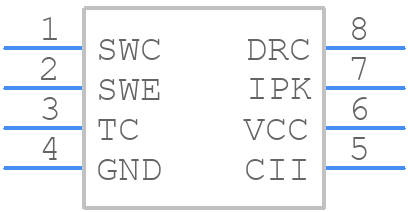

Symbol
MC34063ACN - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MC34063ACN - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP8_2
click to zoom
3D Models
MC34063ACN - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP8_2
click to zoom

MC34063ACN Details

  • Manufacturer Part Number:

    MC34063ACN

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.1

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.8 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    100 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC34063ACN Frequently Asked Questions (FAQs)

  • The maximum input voltage that the MC34063ACN can handle is 40V, but it's recommended to keep it below 30V for reliable operation.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements.
  • The compensation pin is used to compensate for the internal voltage regulator's output voltage. A capacitor and resistor network can be connected to this pin to adjust the output voltage and stability. The datasheet provides a recommended compensation network circuit.
  • Ensure good thermal design and heat dissipation by providing adequate airflow, using a heat sink if necessary, and keeping the device away from heat sources. Monitor the device temperature and adjust the design as needed to stay within the recommended operating temperature range of -40°C to 125°C.
  • The maximum output current that the MC34063ACN can provide is 1.5A, but it's recommended to keep it below 1A for reliable operation and to avoid overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC34063ACN Overview

Use the download button to access the MC34063ACN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC340, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
