Description:Low Standby Current; Output Voltage Adjustable; Precision 2% Reference; Operation from 3.0 V to 40 V Input; Current Limiting; Frequency Operation to 100 kHz; Output Switch Current to 1.5 A; MC34063A = 0 to +70℃; MC33063A = -40 to +85℃; MC33063AV / NCV33063A = -40 to +125℃; 4x4mm DFN package option
The maximum input voltage that can be applied to the MC34063AP1G is 40V, but it's recommended to keep it below 30V for reliable operation.
To ensure CCM operation, the inductor value should be chosen such that the inductor current ripple is less than 30% of the average inductor current. Additionally, the output capacitor should be large enough to filter the output voltage ripple.
The error amplifier output (pin 5) is used to compensate for voltage drops in the output stage. It can be connected to the output voltage sense pin (pin 6) to improve output voltage regulation. A capacitor can be connected between pin 5 and ground to filter the error amplifier output.
The inductor value depends on the output current, switching frequency, and input voltage. A good starting point is to use the inductor value calculation formula provided in the datasheet. Then, adjust the value based on the specific application requirements and performance trade-offs.
The maximum output current that the MC34063AP1G can deliver depends on the input voltage, output voltage, and inductor value. Typically, it can deliver up to 1.5A, but this can be limited by the internal switch current rating and the thermal performance of the package.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC34063AP1G Overview

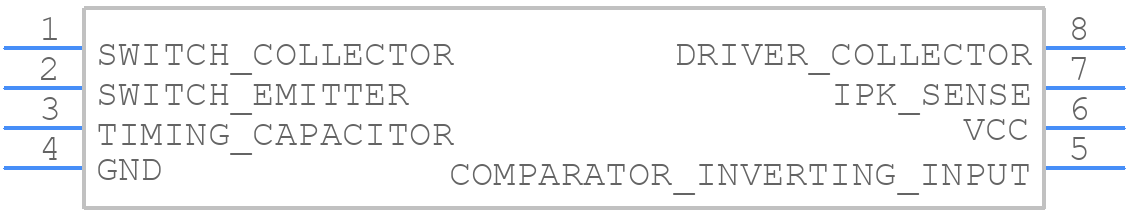

Use the download button to access the MC34063AP1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC340,
or try a keyword search, such as Switching Regulator or Controllers
