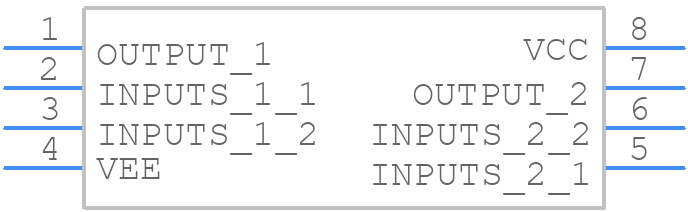

MC34072D - Motorola

MC34072D Details

• Manufacturer Part Number:

  MC34072D

• Part Life Cycle Code:

  Transferred

• Package Description:

  PLASTIC, SOIC-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Motorola Semiconductor Products

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.7 µA

• Bias Current-Max (IIB) @25C:

  0.5 µA

• Common-mode Reject Ratio-Min:

  70 dB

• Common-mode Reject Ratio-Nom:

  97 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  7000 µV

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e0

• Length:

  4.9 mm

• Low-Offset:

  NO

• Neg Supply Voltage Limit-Max:

  -22 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Slew Rate-Min:

  8 V/us

• Slew Rate-Nom:

  10 V/us

• Supply Current-Max:

  5.6 mA

• Supply Voltage Limit-Max:

  22 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  4500

• Voltage Gain-Min:

  20000

• Width:

  3.9 mm
