- Part Number MC34459
- Manufacturer Multicomp Pro
- Pin Count 15
- Part Category Connector
- Package Category Other
- Footprint Name Other - MC34459-1
- Released Date Oct 28, 2021
- Last Modified Date Mar 3, 2026 7:03 AM UTC
- Pinout / Pin List Click Here (Member Only)
MC34459 Details
-
Manufacturer Part Number:
MC34459
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
SPC Multicomp
-
Connector Type:
PCB CONNECTOR
-
DIN Conformance:
NO
-
Filter Feature:
NO
-
IEC Conformance:
NO
-
MIL Conformance:
NO
-
Mixed Contacts:
NO
MC34459 Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the MC34459 is 4.5V to 18V.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended range.
-
The maximum output current of the MC34459 is 1A per channel, with a total maximum output current of 2A.
-
To prevent overheating, ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high temperatures or high currents.
-
While the MC34459 is a general-purpose device, it may not meet the specific requirements for high-reliability or automotive applications. Consult the manufacturer or a qualified engineer to determine suitability for such applications.
Trust Checks
Community Provided
System Verified
Community Approved
MC34459 Overview

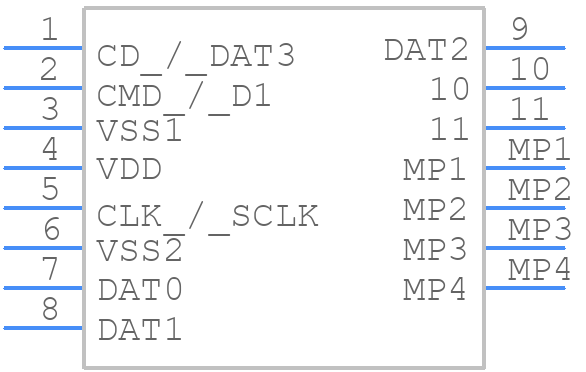

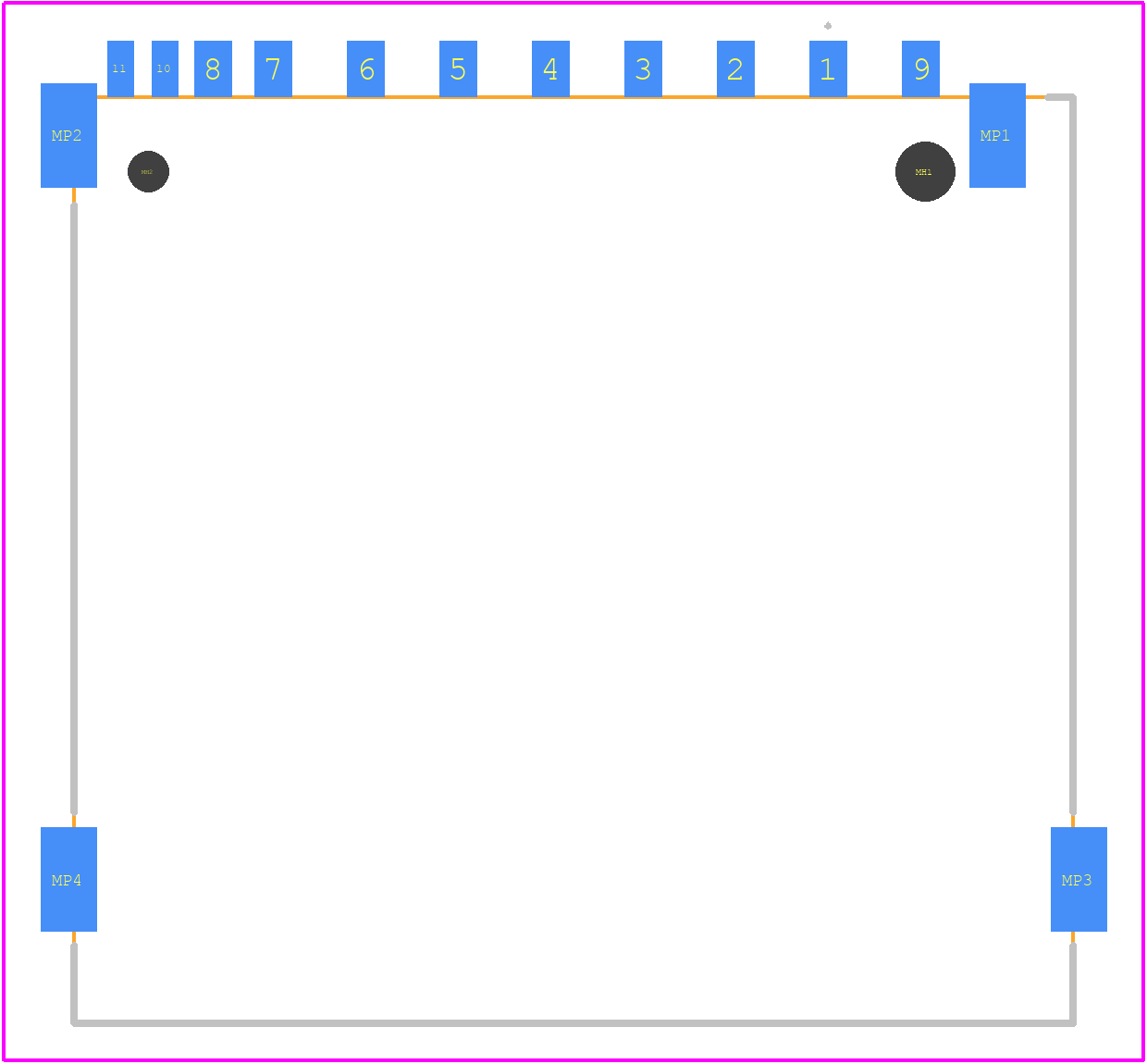

Use the download button to access the MC34459 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC344,
or try a keyword search, such as Headers and Edge Type Connectors
