MC3456P - Motorola

Description: Dual Timing Circuit 200 mA ,+18Vdc,200mA,625mW, 20 mΩ –65 to +150°C

Download MC3456P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

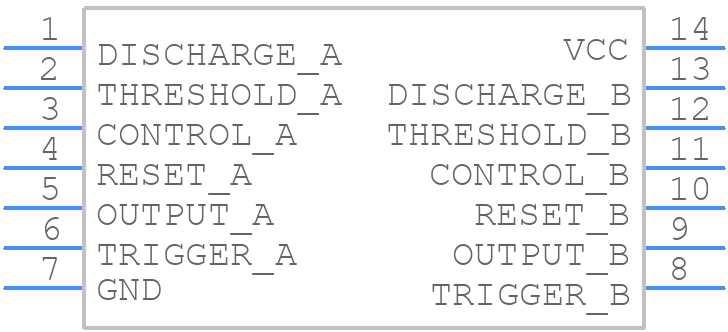

MC3456P - Motorola - PCB symbol
click to zoom
PCB Footprints

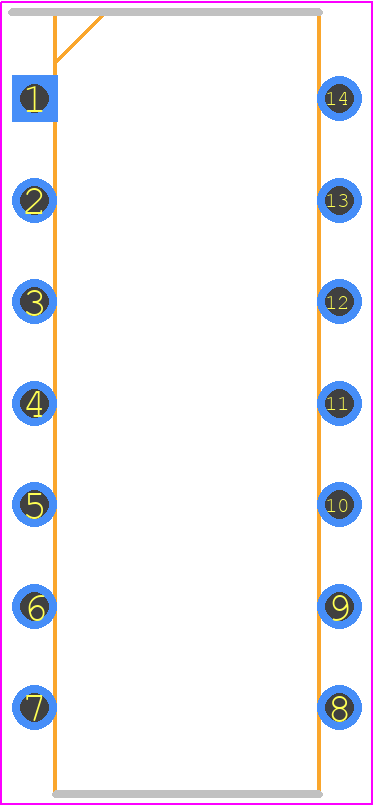

MC3456P - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P SUFFIX PLASTIC DIP PACKAGE CASE 646–06 ISSUE L
click to zoom
3D Models
MC3456P - Motorola - 3D model - Dual-In-Line Packages - P SUFFIX PLASTIC DIP PACKAGE CASE 646–06 ISSUE L
click to zoom

MC3456P Details

  • Manufacturer Part Number:

    MC3456P

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, DIP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • Analog IC - Other Type:

    PULSE; RECTANGULAR

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    18.86 mm

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.69 mm

  • Supply Current-Max (Isup):

    30 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC3456P Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC3456P is 10V to 16V, with a typical voltage of 12V.
  • To ensure stable operation in high-temperature environments, it's recommended to use a heat sink with a thermal resistance of less than 10°C/W and to keep the junction temperature below 150°C.
  • The maximum output current of the MC3456P is 1.5A per channel, with a total maximum output current of 3A for both channels.
  • To protect the MC3456P from input voltage transients and spikes, it's recommended to use a voltage regulator with a transient suppressor, such as a TVS diode, and to add input capacitors with a value of at least 10uF.
  • The bootstrap capacitor is used to generate the high-side gate drive voltage for the internal power MOSFETs. It's recommended to use a capacitor with a value of at least 10nF and a voltage rating of at least 25V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC3456P Overview

Use the download button to access the MC3456P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC345, or try a keyword search, such as Analog Waveform Generation Functions
