The recommended layout and placement for the MC34739 involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane is also recommended.
To ensure proper power-up and initialization, apply power to the device in the correct sequence (VDD, then VBAT), and ensure that the input voltage is within the recommended range. Also, make sure to tie the EN pin high to enable the device, and wait for the POR (Power-On Reset) signal to settle before starting operation.
The maximum current rating for the MC34739's output stages is 1.5A per channel, with a total current limit of 3A for all channels combined. However, it's recommended to derate the current based on the ambient temperature and PCB thermal design.
To configure the MC34739's I2C interface for reliable communication, use a pull-up resistor on the SCL line, and ensure that the I2C clock frequency is within the recommended range (100 kHz to 400 kHz). Also, use a repeated start condition for multi-byte transfers, and implement error checking and retries in your I2C driver.
The MC34739 has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To prevent overheating, ensure good thermal conduction between the device and the PCB, use a heat sink if necessary, and avoid operating the device at maximum current and voltage simultaneously.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC34739 Overview

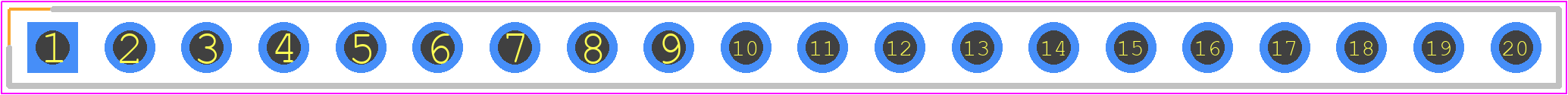

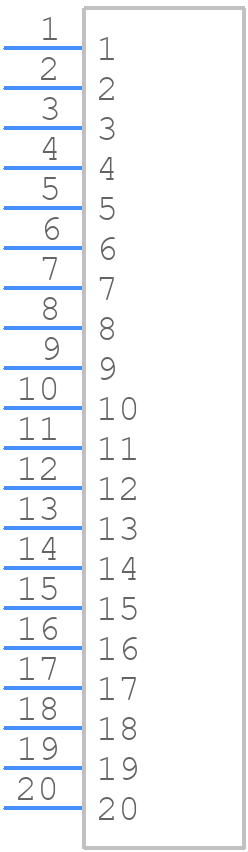

Use the download button to access the MC34739 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC347,
or try a keyword search, such as Headers and Edge Type Connectors
