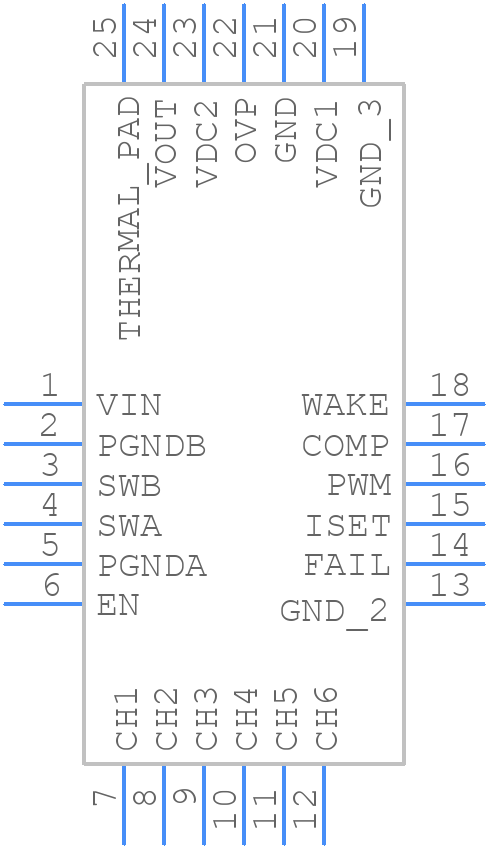

MC34845CEP - NXP

MC34845CEP Details

• Manufacturer Part Number:

  MC34845CEP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  QFN-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Data Input Mode:

  SERIAL

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  S-XQCC-N24

• Length:

  4 mm

• Moisture Sensitivity Level:

  3

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  96

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC24,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.65 mm

• Supply Current-Max:

  6.5 mA

• Supply Voltage-Max:

  21 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  10 V

• Supply Voltage1-Max:

  21 V

• Supply Voltage1-Min:

  5 V

• Supply Voltage1-Nom:

  10 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  4 mm

• fmax-Min:

  0.0006 MHz
