MC3630 - MEMSIC

Description: Accelerometers Digital output 3 Axis Acceleronmeter

Download MC3630 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

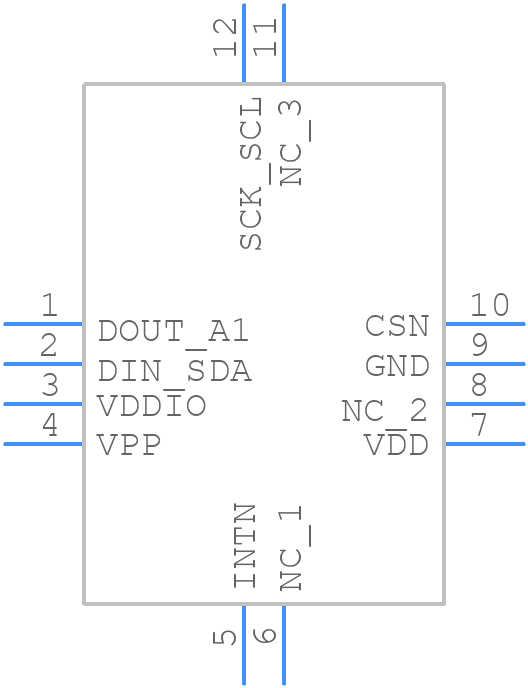

Symbol
MC3630 - MEMSIC - PCB symbol
click to zoom
PCB Footprints
MC3630 - MEMSIC PCB footprint - Other - Other - MC3630-2
click to zoom
3D Models
MC3630 - MEMSIC - 3D model - Other - MC3630-2
click to zoom

MC3630 Details

  • Manufacturer Part Number:

    MC3630

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    VLGA-12

  • Country Of Origin:

    Mainland China

  • Manufacturer:

    Memsic Inc

  • Body Breadth:

    2 mm

  • Body Height:

    0.94 mm

  • Body Length or Diameter:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.40-1.62V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC12,.07SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

MC3630 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • The interrupt signals from the MC3630 are active-low and open-drain. You should use an external pull-up resistor to connect the interrupt pins to a microcontroller or other logic device.
  • The MC3630 can measure accelerations up to ±8g, but it can be configured to measure up to ±16g or ±32g with reduced sensitivity.
  • The MC3630 does not require calibration. It is factory-calibrated and the calibration data is stored in the device's internal memory.
  • The MC3630 operates over a temperature range of -40°C to +85°C, but the accuracy and sensitivity of the device may vary with temperature.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC3630 Overview

Use the download button to access the MC3630 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC363, or try a keyword search, such as Other Sensors/Transducers
