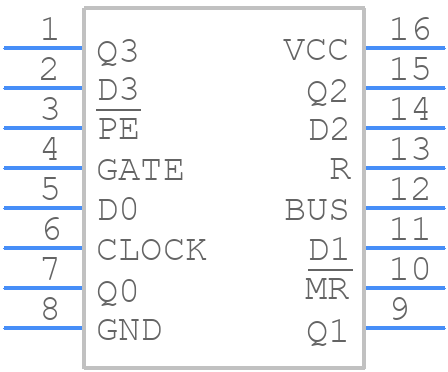

MC4016P - Motorola

MC4016P Details

• Manufacturer Part Number:

  MC4016P

• Part Life Cycle Code:

  Obsolete

• Package Description:

  PLASTIC, DIP-16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Motorola Semiconductor Products

• YTEOL:

  0

• Additional Feature:

  PROGRAMMABLE TO DIVIDE INPUT BY 0 - 9

• Count Direction:

  DOWN

• Family:

  4000/14000/40000

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e0

• Length:

  19.175 mm

• Load Capacitance (CL):

  15 pF

• Load/Preset Input:

  YES

• Logic IC Type:

  DIVIDE BY N COUNTER

• Mode of Operation:

  ASYNCHRONOUS

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  75 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power Supply Current-Max (ICC):

  65 mA

• Propagation Delay (tpd):

  45 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.44 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.62 mm

• fmax-Min:

  8 MHz
