The maximum operating frequency of the MC4024P is 100 kHz.
Yes, the MC4024P can operate in high-temperature applications up to 125°C, but with reduced performance and reliability.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Also, ensure that the input signals are within the recommended voltage range.
Use a multi-layer PCB with a solid ground plane, and keep the input and output traces short and separate to minimize noise and crosstalk. Also, use bypass capacitors to decouple the power supply.
Check the power supply voltage, input signal integrity, and PCB layout for any issues. Also, verify that the device is properly biased and that the input signals are within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC4024P Overview

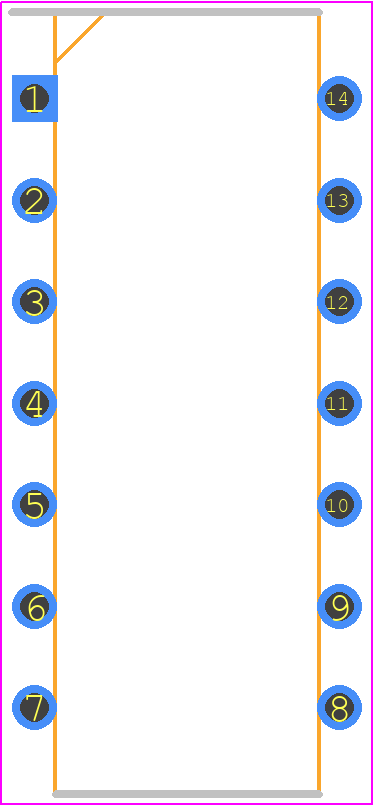

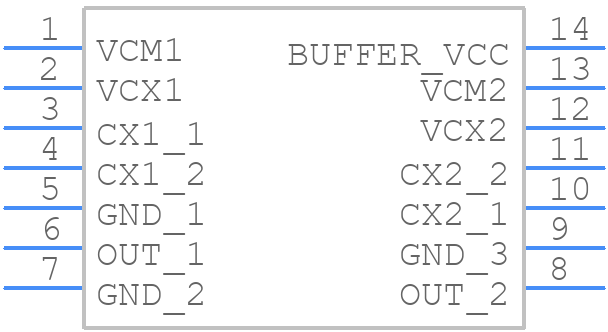

Use the download button to access the MC4024P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC402,
or try a keyword search, such as Other Oscillators
