Part Image

MC42005A6W-BNMLWI-V2 - MIDAS

Description: DISPLAY, ALPHANUMERIC, 20X4, WHITE; Character Count x Line:20 x 4; Display Appearance:White on Blue; Logic Voltage:5V; Interface Type:I2C; Font Set:English, Japanese; Display Mode:Transmissive; Character Size:4.75mm; LCD Display RoHS Compliant: Yes

Download MC42005A6W-BNMLWI-V2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

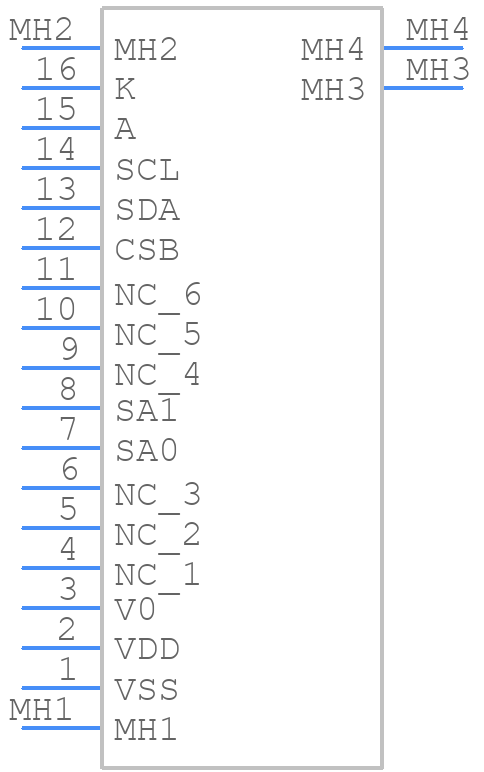

MC42005A6W-BNMLWI-V2 - MIDAS - PCB symbol
click to zoom
PCB Footprints

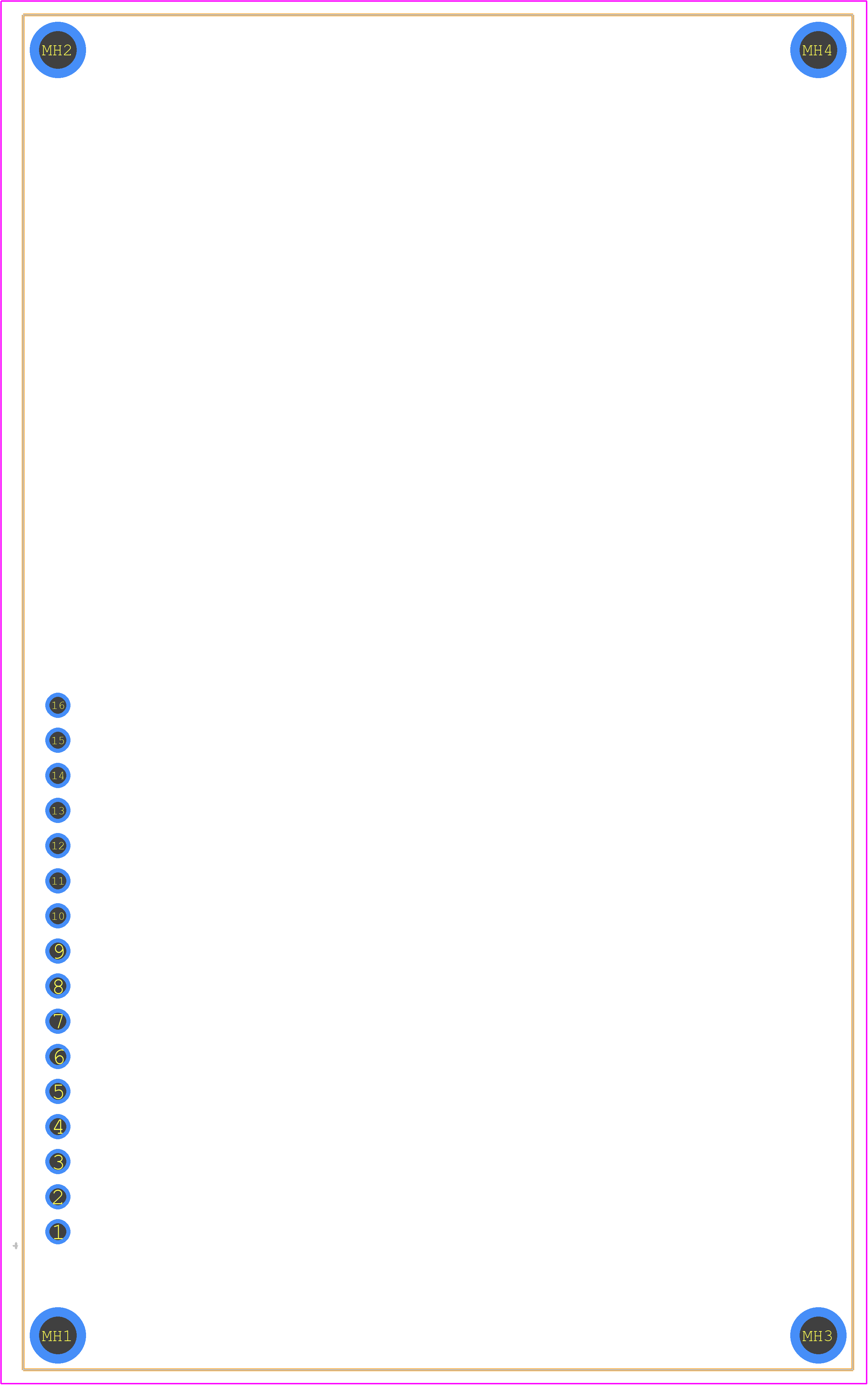

MC42005A6W-BNMLWI-V2 - MIDAS PCB footprint - Other - Other - MC42005A6W-BNMLWI-V2-2
click to zoom
3D Models
MC42005A6W-BNMLWI-V2 - MIDAS - 3D model - Other - MC42005A6W-BNMLWI-V2-2
click to zoom

MC42005A6W-BNMLWI-V2 Details

  • Manufacturer Part Number:

    MC42005A6W-BNMLWI-V2

  • Manufacturer:

    Midas Displays

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC42005A6W-BNMLWI-V2 Overview

Use the download button to access the MC42005A6W-BNMLWI-V2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC420, or try a keyword search, such as Terminals and Terminal Blocks
