- Part Number MC44608P75
- Manufacturer onsemi
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 8 LEAD PDIP_2021
- Released Date Jul 31, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC44608P75 Details
-
Manufacturer Part Number:
MC44608P75
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
onsemi
-
YTEOL:
0
-
Analog IC - Other Type:
SWITCHING CONTROLLER
-
Control Mode:
VOLTAGE-MODE
MC44608P75 Frequently Asked Questions (FAQs)
-
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
-
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, ensure good thermal design, and consider using a heat sink or thermal interface material to reduce thermal resistance.
-
The MC44608P75 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
-
Yes, the MC44608P75 is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it's essential to follow the recommended operating conditions and design guidelines to ensure reliable operation.
-
To troubleshoot issues with the MC44608P75, start by reviewing the datasheet and application notes. Check the power supply, input signals, and output loads to ensure they are within the recommended operating conditions. Use oscilloscopes or logic analyzers to debug the circuit, and consider using a development board or evaluation kit to simplify the troubleshooting process.
Trust Checks
Community Provided
System Verified
Community Approved
MC44608P75 Overview

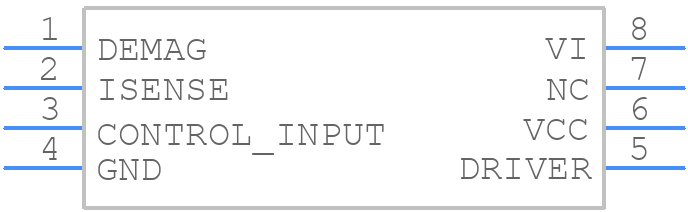

Use the download button to access the MC44608P75 schematic symbol, PCB footprint, and 3D model.
