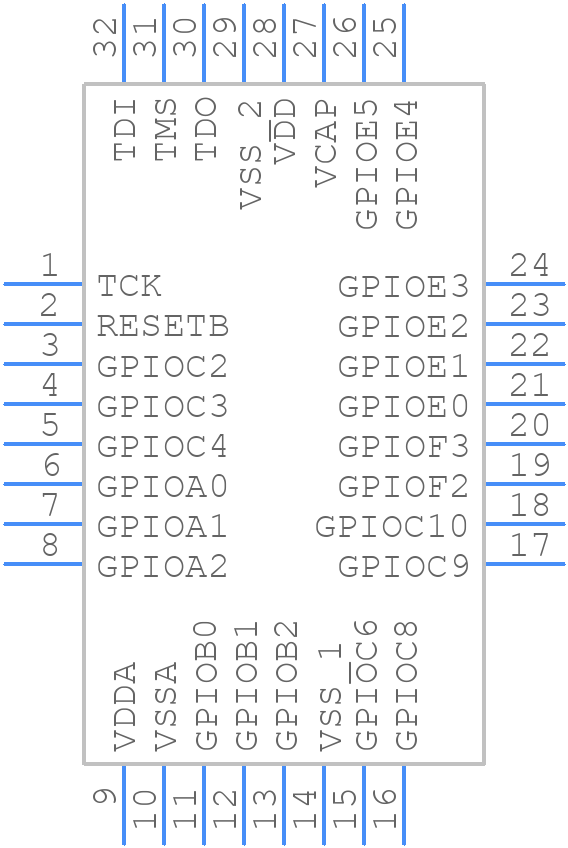

MC56F82643VLC - NXP

MC56F82643VLC Frequently Asked Questions (FAQs)

• What is the maximum operating frequency of the MC56F82643VLC?
  The maximum operating frequency of the MC56F82643VLC is 32 MHz, but it can be overclocked to 40 MHz with reduced voltage and temperature range.
• How do I configure the clock source for the MCU?
  The clock source can be configured using the Clock Management Unit (CMU) module. The CMU allows selection of the clock source, clock frequency, and clock distribution. The configuration is done through the CMU registers.
• What is the purpose of the various power modes in the MC56F82643VLC?
  The MC56F82643VLC has several power modes, including Run, Wait, Stop, and VLLS (Very Low Leakage Stop). These modes allow the MCU to reduce power consumption when not actively executing code. Run mode is the normal operating mode, Wait mode reduces power consumption by stopping the CPU clock, Stop mode reduces power consumption further by stopping the system clock, and VLLS mode reduces power consumption to a minimum by powering down most of the MCU's circuits.
• How do I use the ADC on the MC56F82643VLC?
  The ADC on the MC56F82643VLC is a 12-bit, 4-channel ADC. It can be configured using the ADC registers. The ADC can be triggered by a software command or by an external signal. The ADC conversion result is stored in the ADC result registers.
• What is the purpose of the COP (Computer Operating Properly) module?
  The COP module is a watchdog timer that monitors the MCU's operation. It can be configured to reset the MCU if it does not receive a 'service' signal within a specified time period. This ensures that the MCU is operating properly and can recover from a fault condition.
