MC68008FN12F - Motorola

MC68008FN12F Details

• Manufacturer Part Number:

  MC68008FN12F

• Part Life Cycle Code:

  Obsolete

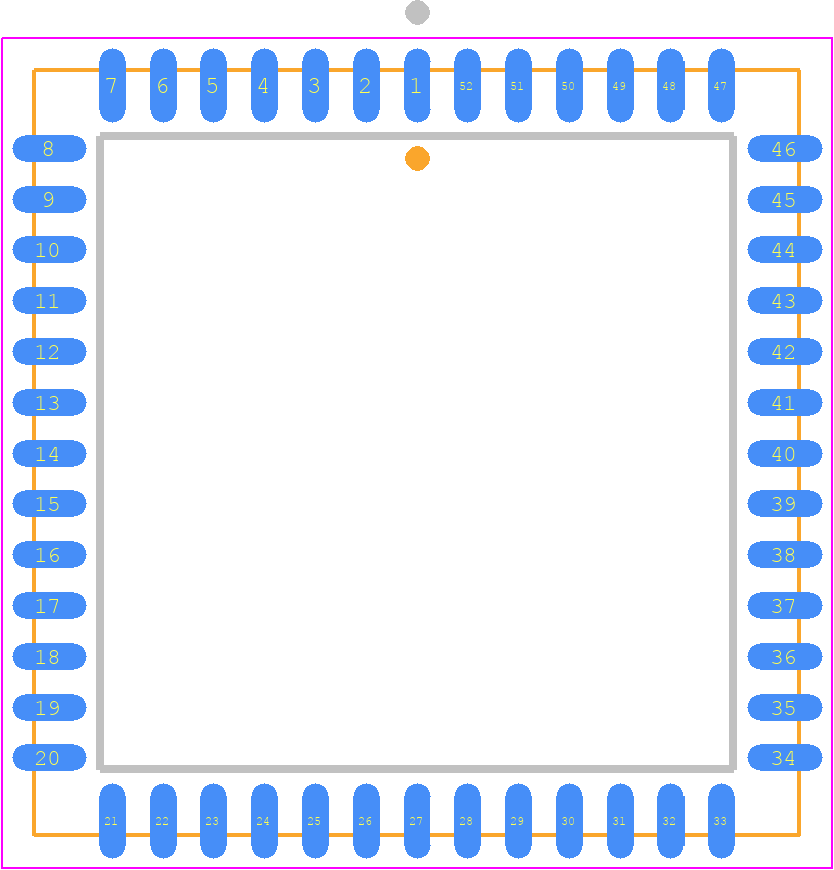

• Package Description:

  PLASTIC, LCC-52

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Motorola Semiconductor Products

• YTEOL:

  0

• Address Bus Width:

  22

• Bit Size:

  32

• Boundary Scan:

  NO

• Clock Frequency-Max:

  16.67 MHz

• External Data Bus Width:

  8

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQCC-J52

• Length:

  19.1262 mm

• Low Power Mode:

  NO

• Number of External Interrupts:

  7

• Number of Terminals:

  52

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• RAM (words):

  0

• Seated Height-Max:

  4.57 mm

• Speed:

  16.67 MHz

• Supply Current-Max:

  50 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  19.1262 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR
