MC68040RC25V - NXP

Description: 68040 Microprocessor IC M680x0 1 Core, 32-Bit 25MHz 182-PGA (47.24x47.24)

Download MC68040RC25V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC68040RC25V - NXP - PCB symbol
click to zoom
PCB Footprints

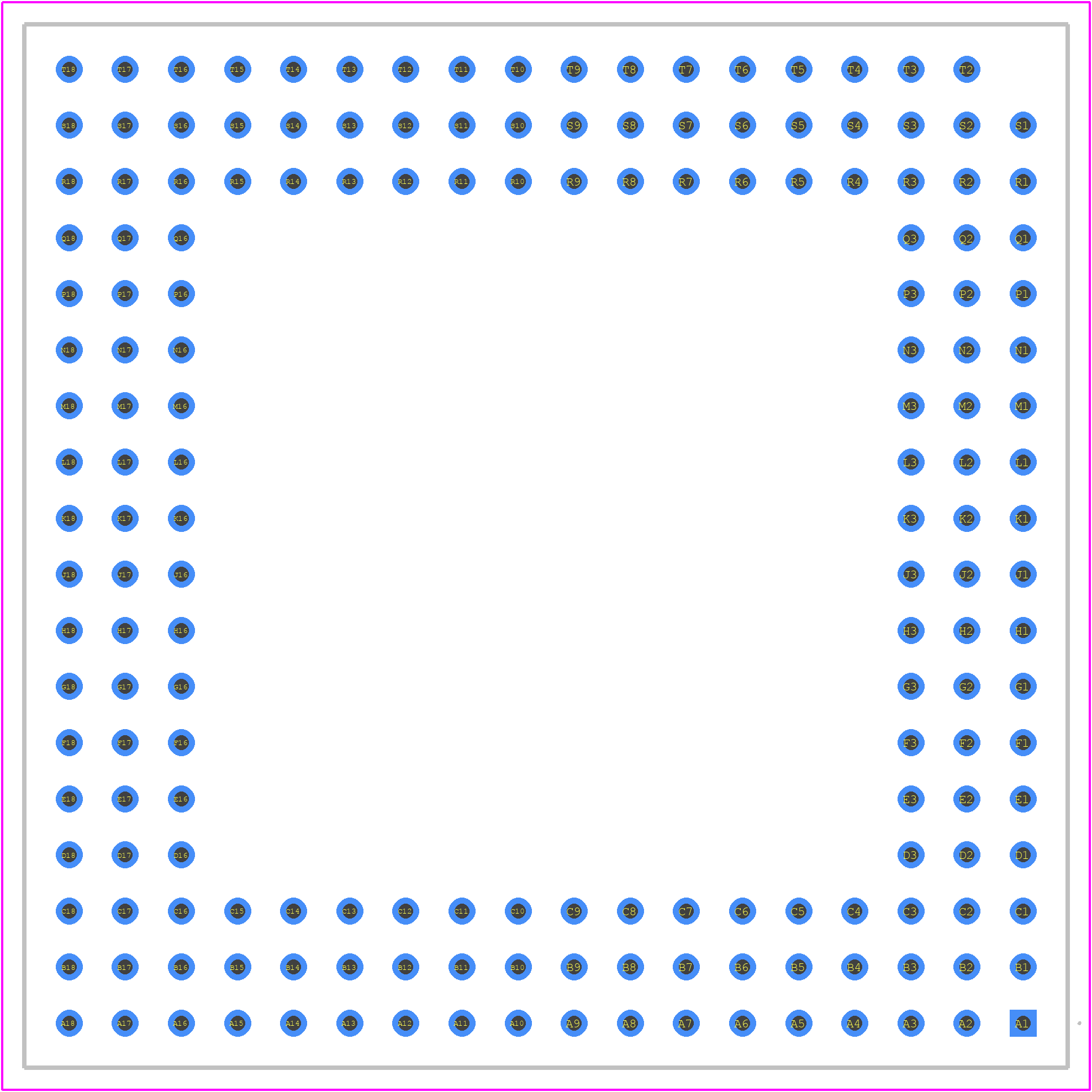

MC68040RC25V - NXP PCB footprint - Other - Other - 179-PGA
click to zoom
3D Models
MC68040RC25V - NXP - 3D model - Other - 179-PGA
click to zoom

MC68040RC25V Details

  • Manufacturer Part Number:

    MC68040RC25V

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PGA-179

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Address Bus Width:

    32

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-CPGA-P179

  • Length:

    47.245 mm

  • Low Power Mode:

    NO

  • Number of Terminals:

    179

  • Operating Temperature-Max:

    110 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    PGA

  • Package Equivalence Code:

    PGA179,18X18

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    3.05 mm

  • Speed:

    25 MHz

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    PERPENDICULAR

  • Width:

    47.245 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR

MC68040RC25V Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MC68040RC25V is -40°C to +85°C, but it can vary depending on the specific application and environment.
  • The MC68040RC25V has a built-in watchdog timer that can be enabled and configured using the WDCR (Watchdog Control Register). The watchdog timer can be set to timeout after a specific period, and it can be reset by writing to the WDCR register.
  • The maximum clock frequency supported by the MC68040RC25V is 25 MHz, but it can be operated at lower frequencies depending on the application requirements.
  • The MC68040RC25V has a vectored interrupt controller that can handle up to 16 interrupt sources. Interrupts are prioritized based on their vector numbers, and the processor can be configured to respond to interrupts using the Interrupt Control Register (ICR).
  • The power consumption of the MC68040RC25V varies depending on the operating frequency, voltage, and application. However, the typical power consumption is around 1.5W at 25 MHz and 3.3V.
