MC68040RC25V - Rochester Electronics

MC68040RC25V Details

• Manufacturer Part Number:

  MC68040RC25V

• Part Life Cycle Code:

  Active

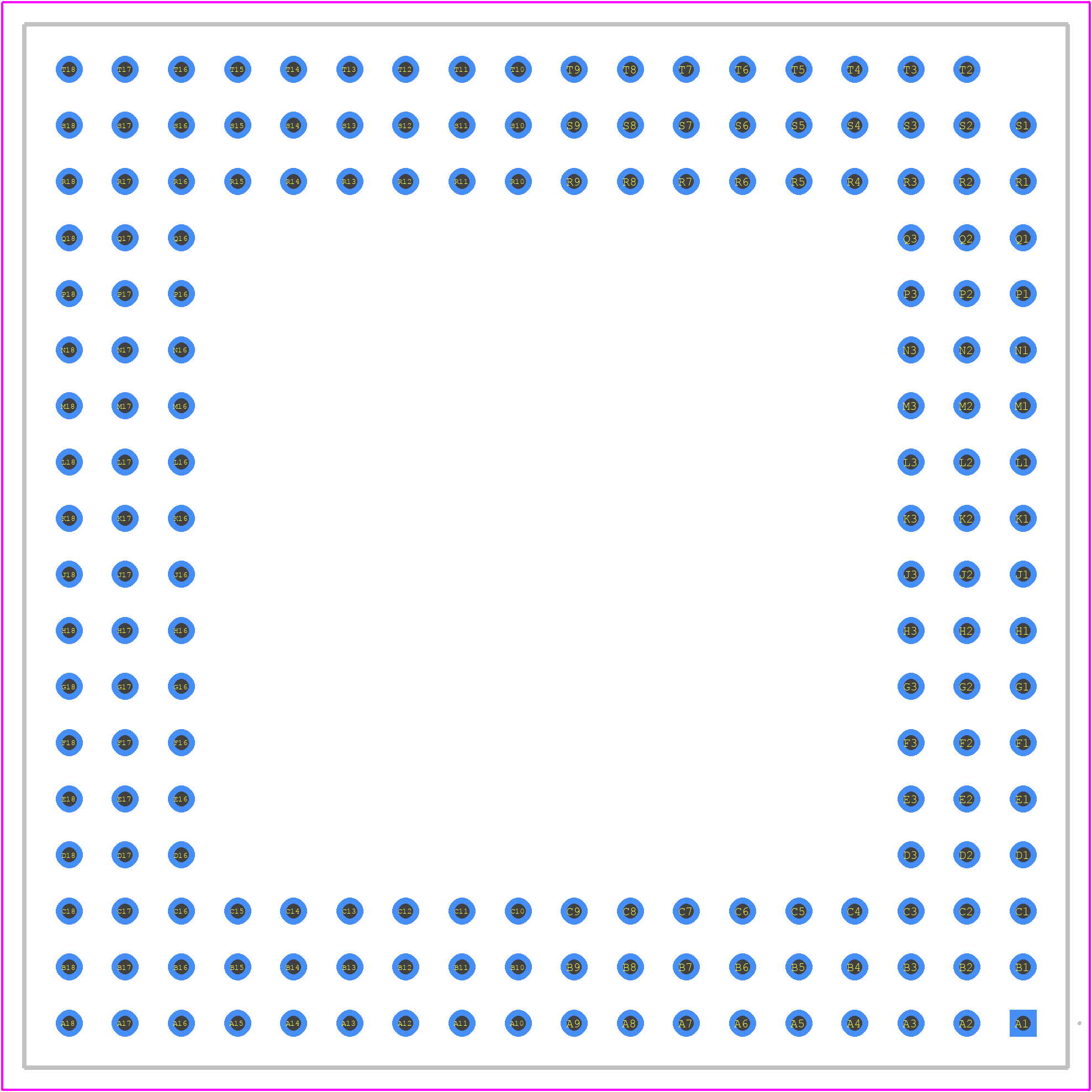

• Part Package Code:

  PGA

• Package Description:

  PGA,

• Pin Count:

  179

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Rochester Electronics LLC

• Address Bus Width:

  32

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  50 MHz

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-CPGA-P179

• Length:

  47.245 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  NOT SPECIFIED

• Number of Terminals:

  179

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  PGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  COMMERCIAL

• Seated Height-Max:

  3.05 mm

• Speed:

  25 MHz

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  HCMOS

• Terminal Finish:

  NOT SPECIFIED

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  PERPENDICULAR

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  47.245 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR
