MC6809L - Motorola

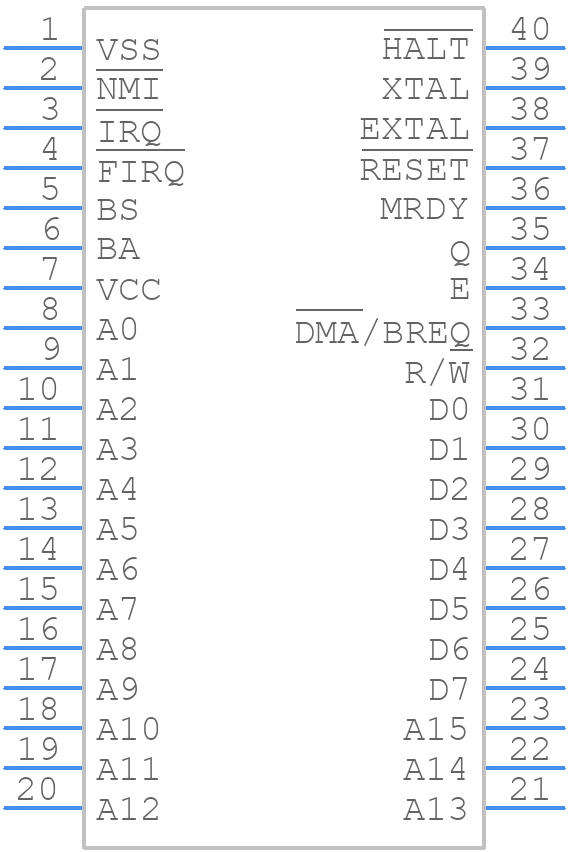

MC6809L Details

• Manufacturer Part Number:

  MC6809L

• Part Life Cycle Code:

  Obsolete

• Package Description:

  CERAMIC, DIP-40

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Motorola Semiconductor Products

• YTEOL:

  0

• Address Bus Width:

  16

• Bit Size:

  8

• Boundary Scan:

  NO

• Clock Frequency-Max:

  4 MHz

• External Data Bus Width:

  8

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-CDIP-T40

• JESD-609 Code:

  e0

• Length:

  50.8 mm

• Low Power Mode:

  NO

• Number of External Interrupts:

  3

• Number of Terminals:

  40

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

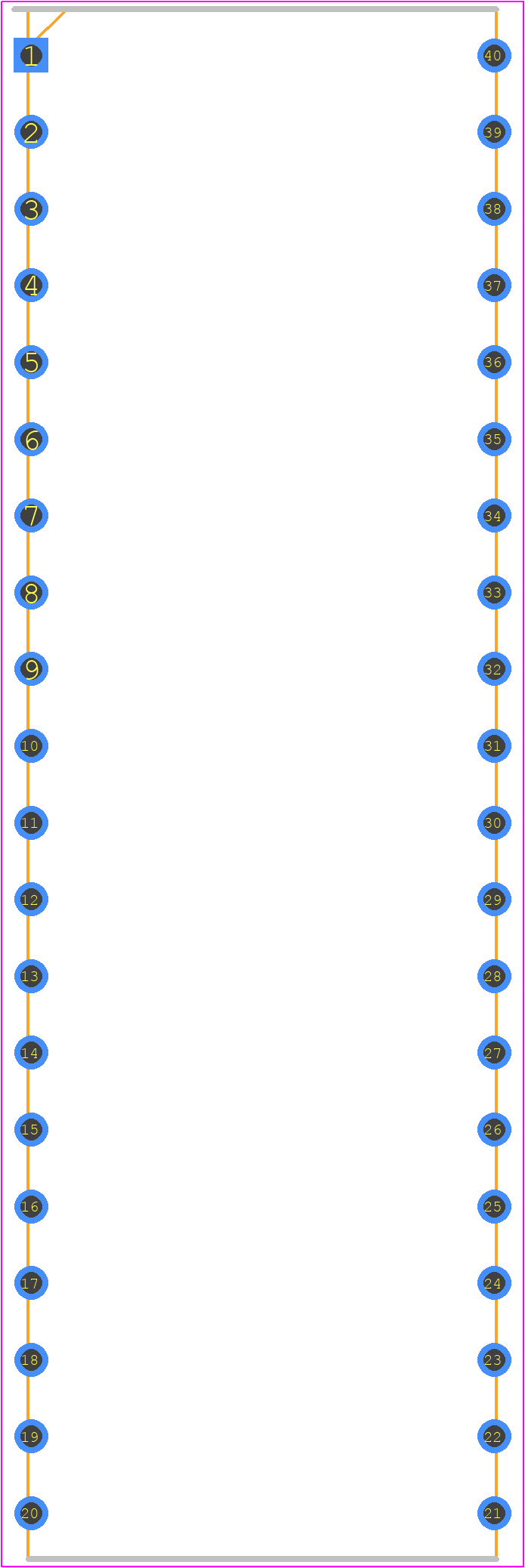

• Package Code:

  DIP

• Package Equivalence Code:

  DIP40,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• RAM (words):

  0

• Seated Height-Max:

  4.32 mm

• Speed:

  1 MHz

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  NMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR
