MC68150FN40R2 - Motorola

MC68150FN40R2 Details

• Manufacturer Part Number:

  MC68150FN40R2

• Part Life Cycle Code:

  Obsolete

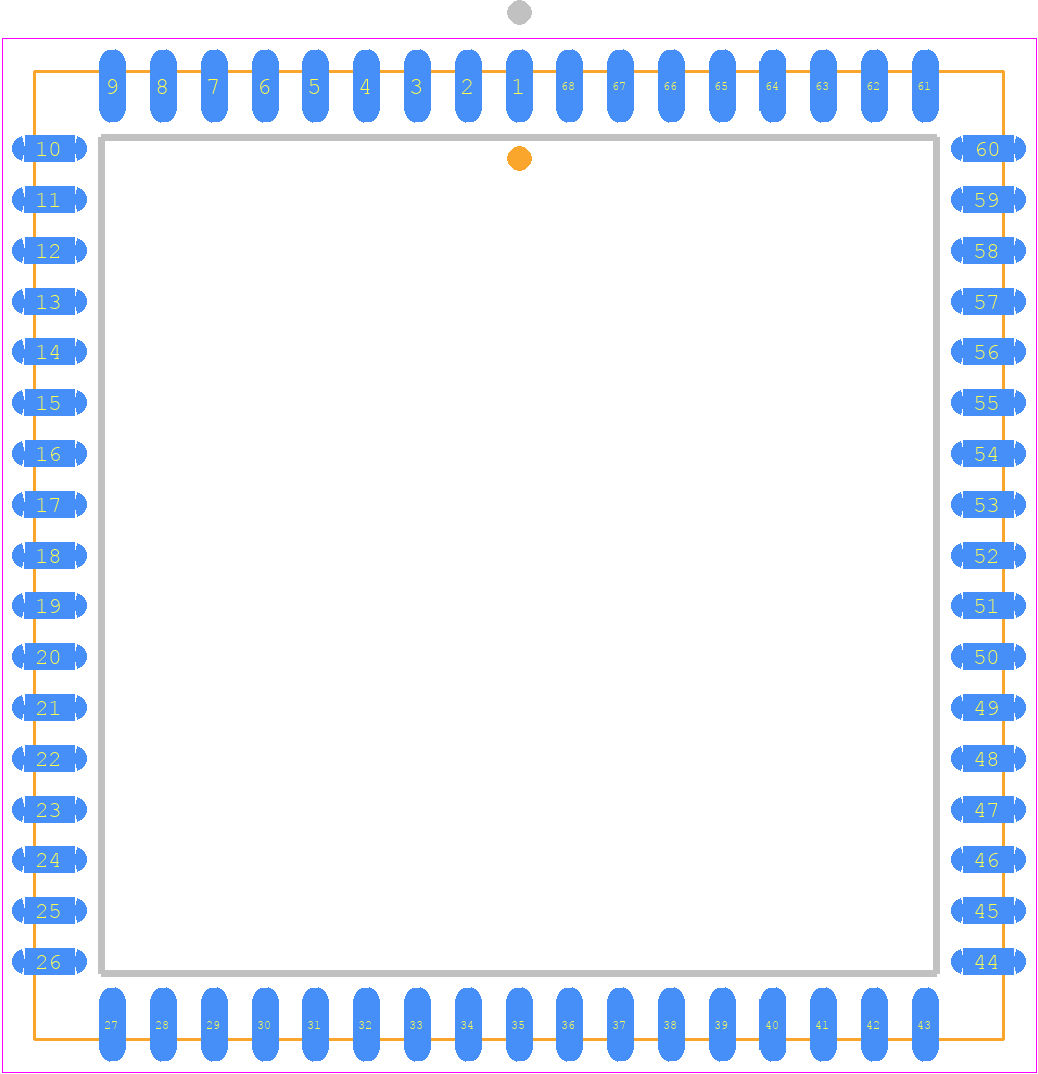

• Package Description:

  PLASTIC, LCC-68

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Motorola Semiconductor Products

• YTEOL:

  0

• JESD-30 Code:

  S-PQCC-J68

• Length:

  24.2062 mm

• Number of Terminals:

  68

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  24.2062 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR CIRCUIT
