MC68160FB - Motorola

Description: LAN Transceiver, Single, 52 Pin, Plastic, QFP

Download MC68160FB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC68160FB - Motorola - PCB symbol
click to zoom

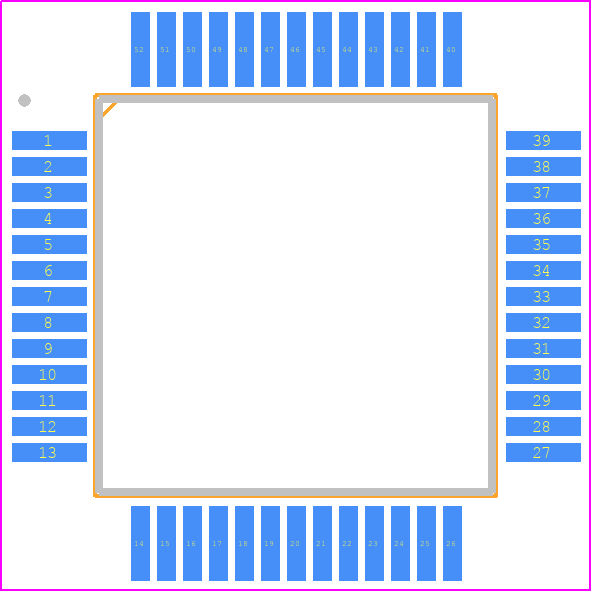

PCB Footprints
MC68160FB - Motorola PCB footprint - Quad Flat Packages - Quad Flat Packages - MC68160FB
click to zoom
3D Models
MC68160FB - Motorola - 3D model - Quad Flat Packages - MC68160FB
click to zoom

MC68160FB Details

  • Manufacturer Part Number:

    MC68160FB

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, TQFP-52

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Motorola Semiconductor Products

  • YTEOL:

    0

  • Data Rate:

    10000 Mbps

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e0

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    200 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

MC68160FB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MC68160FB is -40°C to +85°C, although it can tolerate storage temperatures from -65°C to +150°C.
  • Unused inputs should be tied to VCC or GND through a 1 kΩ resistor to prevent floating inputs and reduce noise susceptibility.
  • The MC68160FB supports clock frequencies up to 25 MHz, but it's recommended to operate at 16.384 MHz or 14.318 MHz for optimal performance.
  • The MC68160FB's baud rate is configured using the Baud Rate Generator (BRG) registers. The formula to calculate the BRG value is: BRG = (Clock Frequency / (16 * Baud Rate)) - 1.
  • The XTAL1 and XTAL2 pins are used to connect an external crystal oscillator, which provides the clock signal for the device. XTAL1 is the input pin, and XTAL2 is the output pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC68160FB Overview

Use the download button to access the MC68160FB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC681, or try a keyword search, such as Network Interfaces
