MC6847P - Motorola

Description: CRT Character Display Controller, 32 X 16 Characters, NMOS, PDIP40

Download MC6847P Model

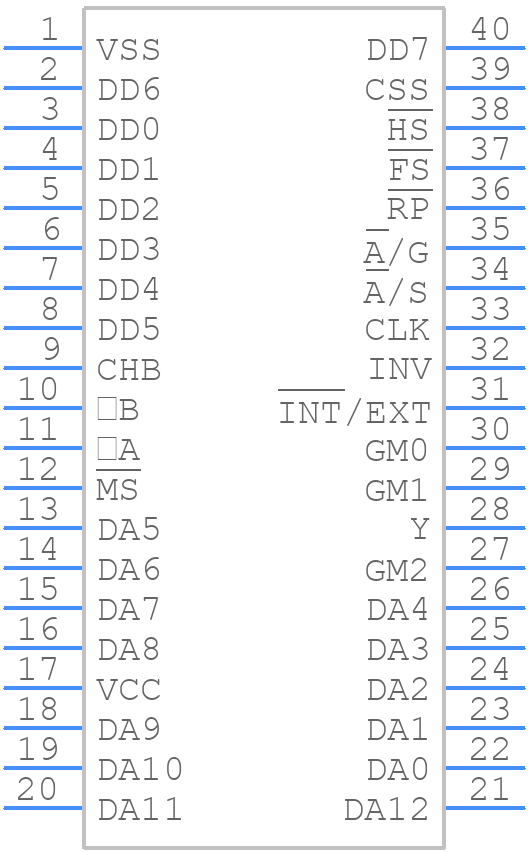

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

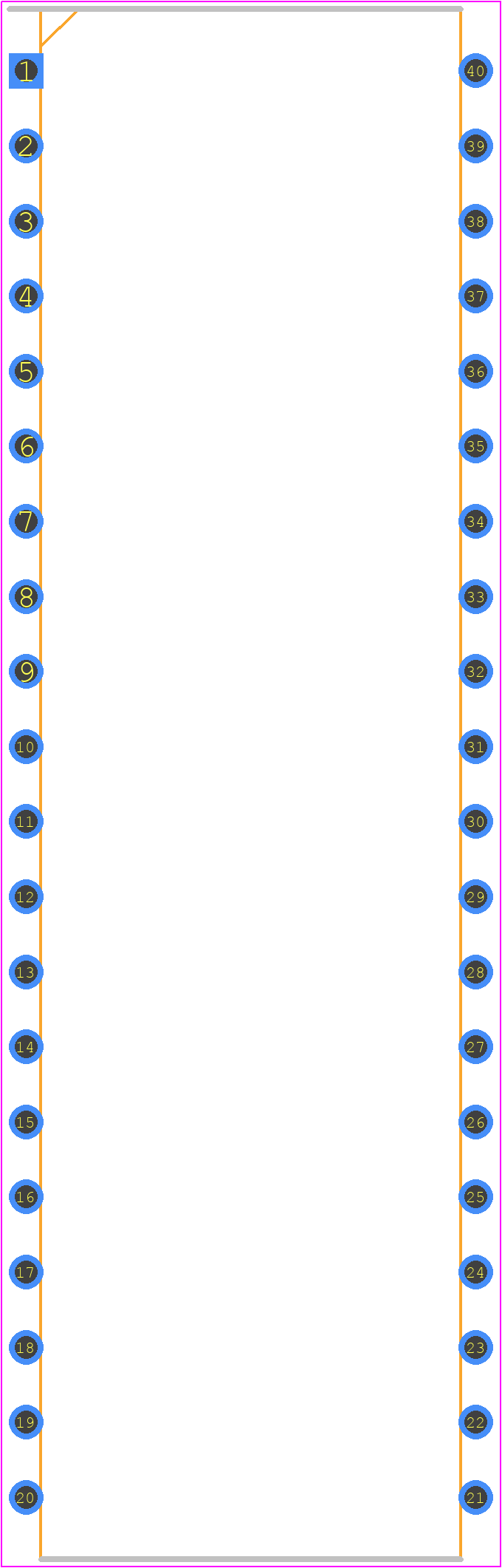

MC6847P - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 711-03
click to zoom
3D Models
MC6847P - Motorola  - 3D model - Dual-In-Line Packages - 711-03
click to zoom

MC6847P Details

  • Manufacturer Part Number:

    MC6847P

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, DIP-40

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Motorola Semiconductor Products

  • YTEOL:

    0

  • Bus Compatibility:

    6800; 68000

  • Clock Frequency-Max:

    3.597555 MHz

  • Display Configuration:

    32 X 16 CHARACTERS

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDIP-T40

  • JESD-609 Code:

    e0

  • Length:

    52.07 mm

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    NMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, CRT CHARACTER DISPLAY

MC6847P Frequently Asked Questions (FAQs)

  • The MC6847P can handle clock frequencies up to 2 MHz, but it's recommended to operate it at 1.79 MHz for optimal performance.
  • To properly initialize the MC6847P, you need to reset the chip by pulling the RESET pin low for at least 100 ns, then release it and wait for the oscillator to stabilize before accessing the video memory.
  • The VSYNC (Vertical Sync) and HSYNC (Horizontal Sync) pins are used to synchronize the video output with the display device. VSYNC is used to indicate the start of a new frame, while HSYNC is used to indicate the start of a new line.
  • To generate a stable video signal, you need to ensure that the clock frequency is stable, the video memory is properly initialized, and the HSYNC and VSYNC pins are properly configured. You may also need to add external components such as resistors and capacitors to filter the video signal.
  • The MC6847P is designed to generate a composite video signal, which may not be compatible with modern LCD displays that typically require a digital video signal. You may need to use an additional component such as a video encoder or a scan converter to convert the composite video signal to a digital signal compatible with the LCD display.
