MC68705R5S - Motorola

MC68705R5S Details

• Manufacturer Part Number:

  MC68705R5S

• Part Life Cycle Code:

  Obsolete

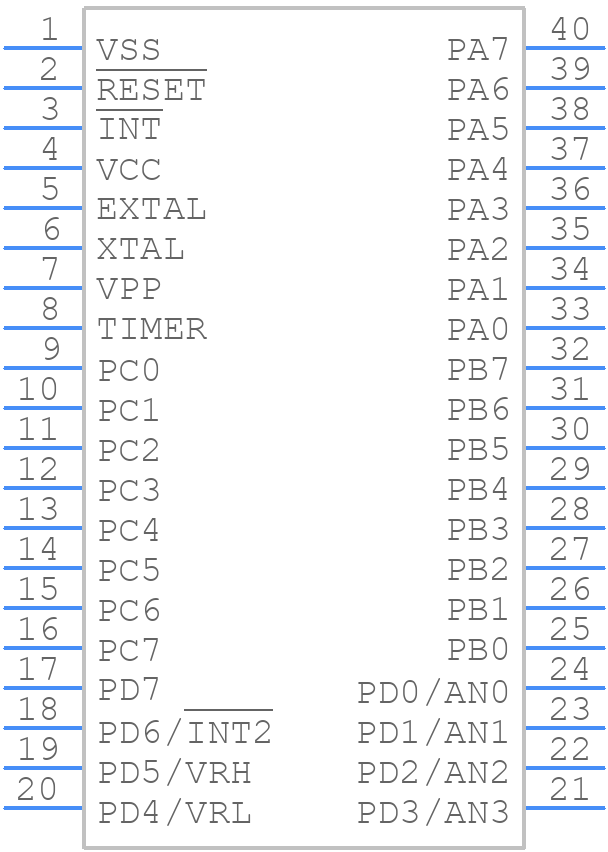

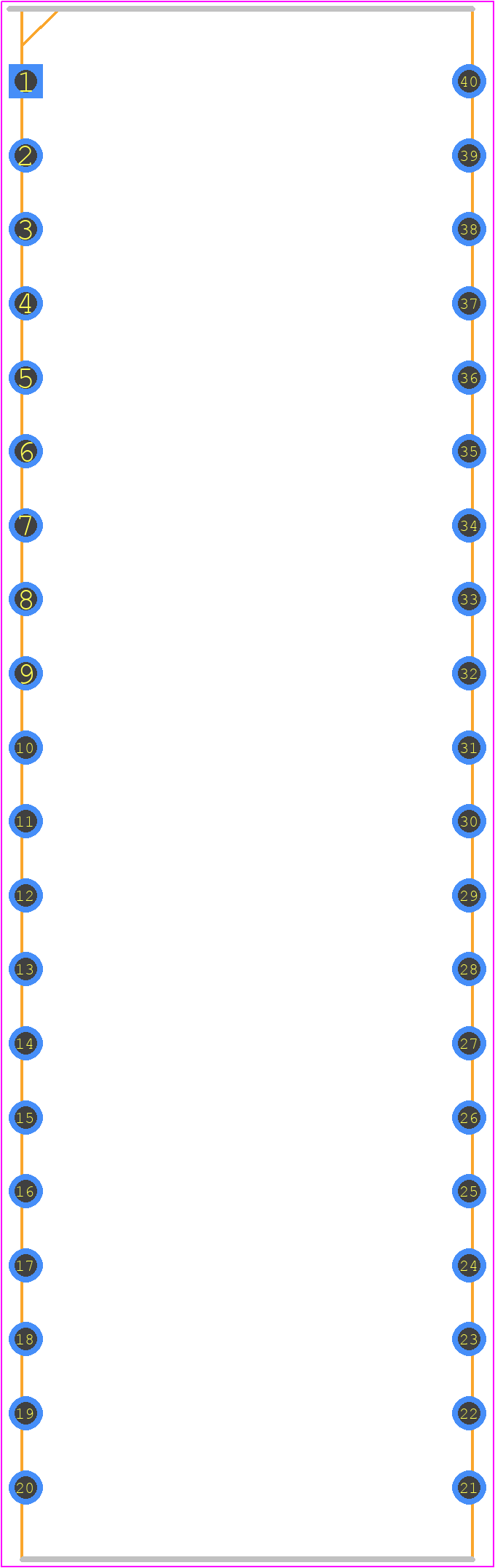

• Package Description:

  CERDIP-40

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Motorola Semiconductor Products

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  6805

• Clock Frequency-Max:

  4.2 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-CDIP-T40

• JESD-609 Code:

  e0

• Length:

  52.275 mm

• Number of I/O Lines:

  32

• Number of Terminals:

  40

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  70 °C

• PWM Channels:

  NO

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP40,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• RAM (bytes):

  112

• ROM (words):

  3776

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  5.84 mm

• Speed:

  1.1 MHz

• Supply Voltage-Max:

  5.75 V

• Supply Voltage-Min:

  5.25 V

• Supply Voltage-Nom:

  5.25 V

• Surface Mount:

  NO

• Technology:

  NMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
