MC68882FN16A - Motorola

MC68882FN16A Details

• Manufacturer Part Number:

  MC68882FN16A

• Part Life Cycle Code:

  Transferred

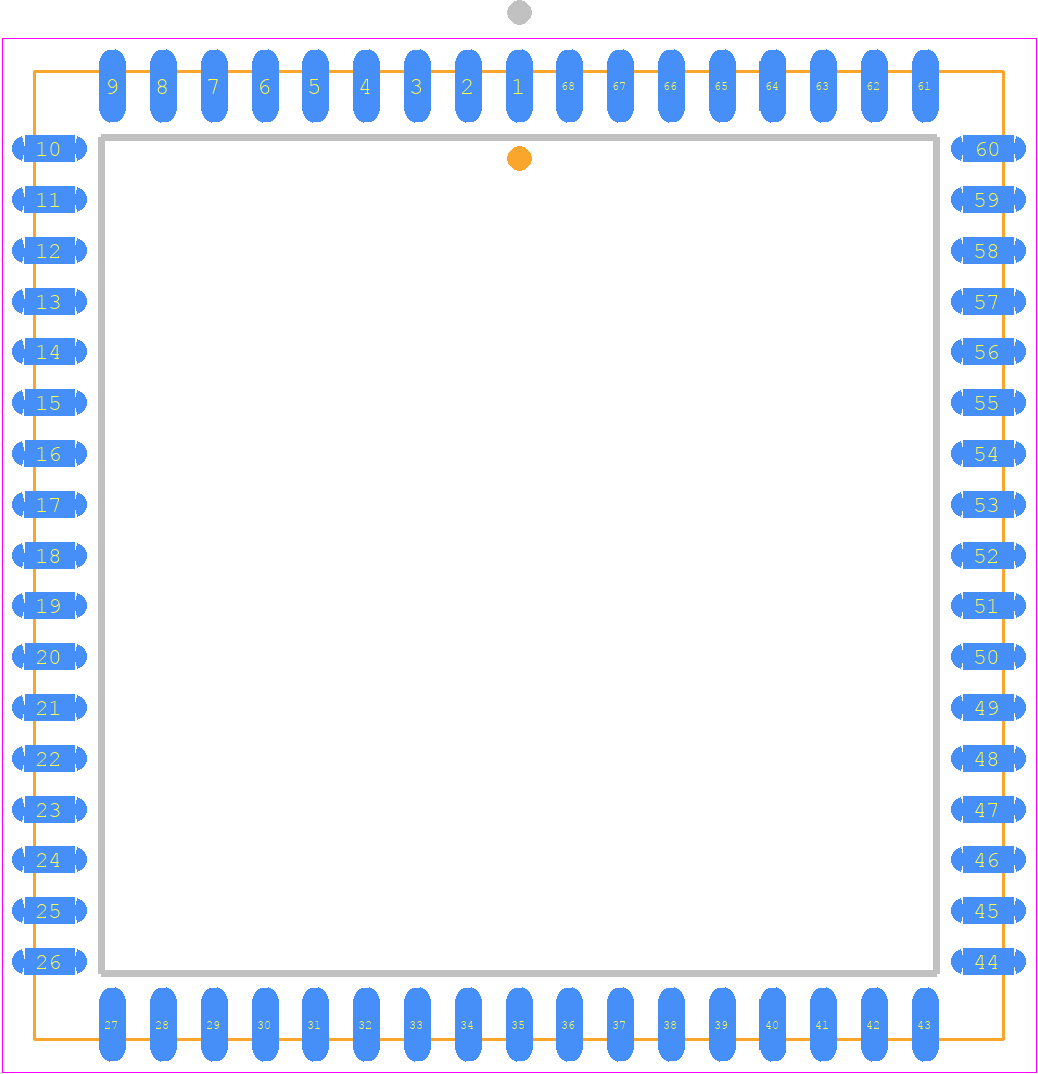

• Package Description:

  LCC-68

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Motorola Semiconductor Products

• Address Bus Width:

  5

• Barrel Shifter:

  YES

• Boundary Scan:

  NO

• Bus Compatibility:

  MC68882

• Clock Frequency-Max:

  16 MHz

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PQCC-J68

• JESD-609 Code:

  e0

• Length:

  24.2062 mm

• Number of Terminals:

  68

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC68,1.0SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  HCMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  24.2062 mm

• uPs/uCs/Peripheral ICs Type:

  MATH PROCESSOR, COPROCESSOR
