MC68901FN - Motorola

Description: PERIPHERAL (MULTIFUNCTION) CONTROLLER, 52 Pin, PLCC

Download MC68901FN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

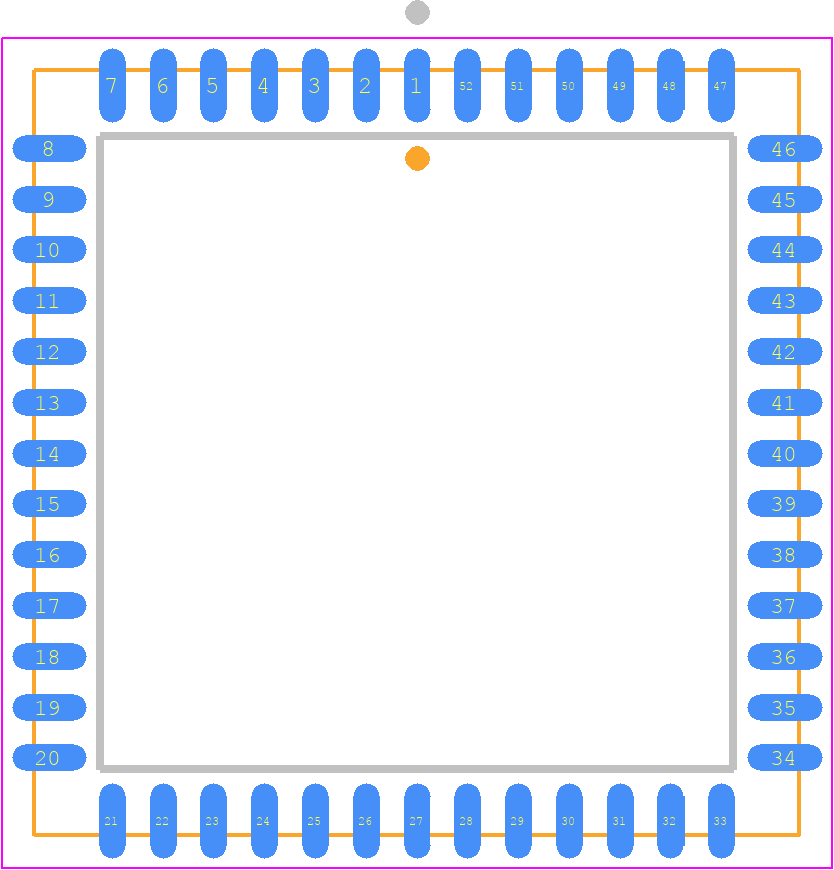

MC68901FN - Motorola PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - MC68008FN12F
click to zoom

MC68901FN Details

  • Manufacturer Part Number:

    MC68901FN

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, LCC-52

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Motorola Semiconductor Products

  • YTEOL:

    0

  • Address Bus Width:

    5

  • Boundary Scan:

    NO

  • Bus Compatibility:

    MC68000

  • Clock Frequency-Max:

    4 MHz

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQCC-J52

  • JESD-609 Code:

    e0

  • Length:

    19.1262 mm

  • Number of I/O Lines:

    8

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max:

    180 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    19.1262 mm

MC68901FN Frequently Asked Questions (FAQs)

  • The MC68901FN can operate at a maximum clock frequency of 16 MHz.
  • The chip select signals (CS0-CS3) can be configured as active high or active low by setting the corresponding bits in the Control Register (CR).
  • The WAIT input pin is used to insert wait states during memory accesses, allowing the MC68901FN to interface with slower memory devices.
  • Yes, the MC68901FN can be used in a system with multiple processors by using the HOLD and HLDA signals to implement a bus arbitration scheme.
  • The MC68901FN can be reset by asserting the RESET input pin low for at least 10 clock cycles.
