MC68HC705B16CFN - Motorola

MC68HC705B16CFN Details

• Manufacturer Part Number:

  MC68HC705B16CFN

• Part Life Cycle Code:

  Transferred

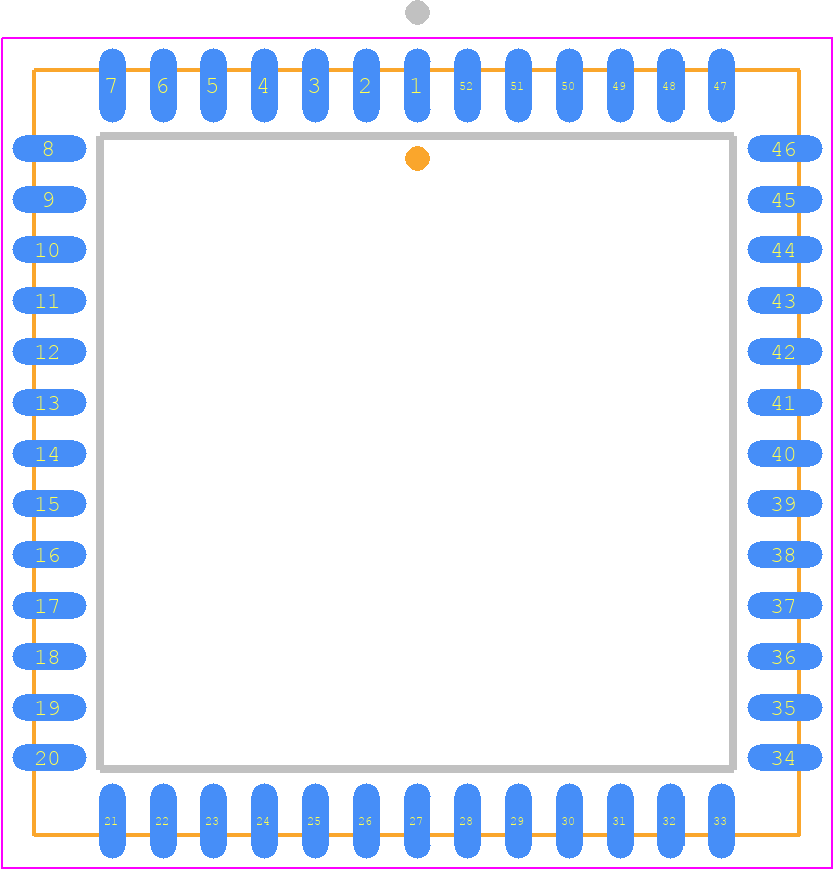

• Package Description:

  PLASTIC, LCC-52

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Motorola Semiconductor Products

• Has ADC:

  YES

• Additional Feature:

  OPERATES AT 3.3V MINIMUM SUPPLY @ 1MHZ

• Bit Size:

  8

• CPU Family:

  6805

• Clock Frequency-Max:

  4.2 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• JESD-30 Code:

  S-PQCC-J52

• JESD-609 Code:

  e0

• Length:

  19.125 mm

• Number of I/O Lines:

  32

• Number of Terminals:

  52

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC52,.8SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• RAM (bytes):

  352

• ROM (words):

  15168

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  4.57 mm

• Speed:

  2.1 MHz

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  HCMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  19.125 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
