MC68HC705B16NCFU - NXP

MC68HC705B16NCFU Details

• Manufacturer Part Number:

  MC68HC705B16NCFU

• Part Life Cycle Code:

  Obsolete

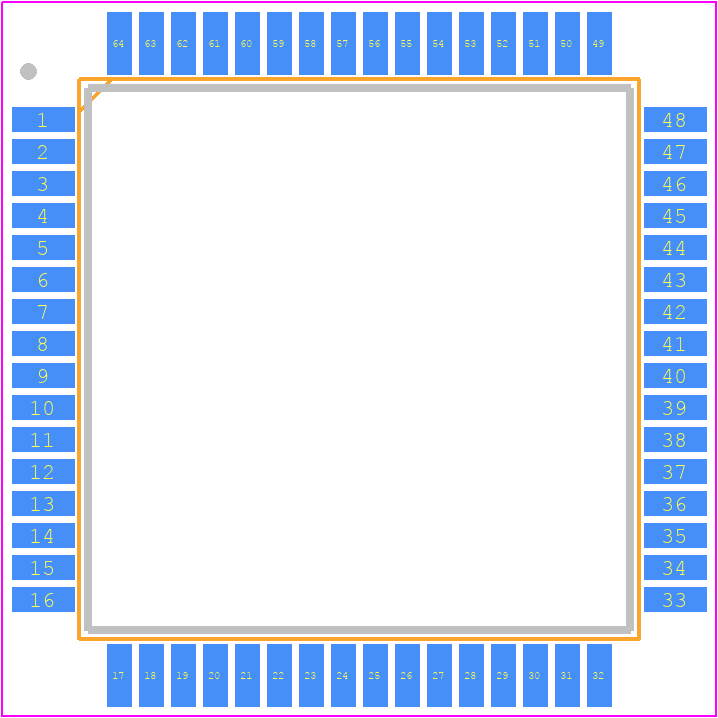

• Package Description:

  QFP-64

• HTS Code:

  8542.31.00.15

• Date Of Intro:

  2016-07-20

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 3.3V SUPPLY AT 1 MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  M68HC05

• Clock Frequency-Max:

  4.2 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G64

• Length:

  14 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  1

• Number of I/O Lines:

  32

• Number of Serial I/Os:

  1

• Number of Terminals:

  64

• Number of Timers:

  1

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP64,.65SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  220

• RAM (bytes):

  352

• ROM (words):

  15168

• ROM Programmability:

  EPROM

• Seated Height-Max:

  2.457 mm

• Speed:

  2.1 MHz

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
