MC68HC705C8ACFNE - NXP

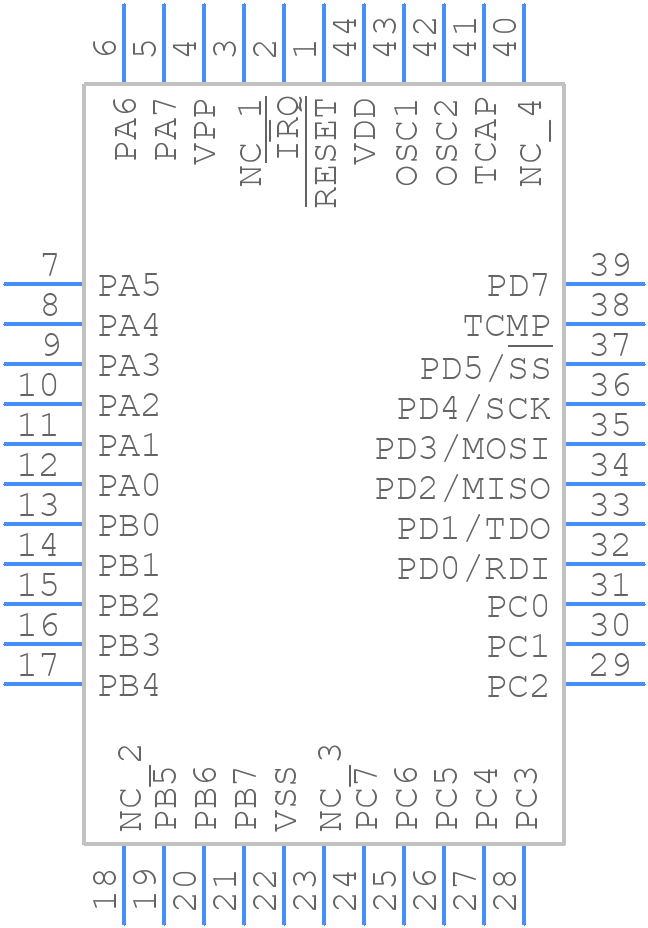

MC68HC705C8ACFNE Details

• Manufacturer Part Number:

  MC68HC705C8ACFNE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

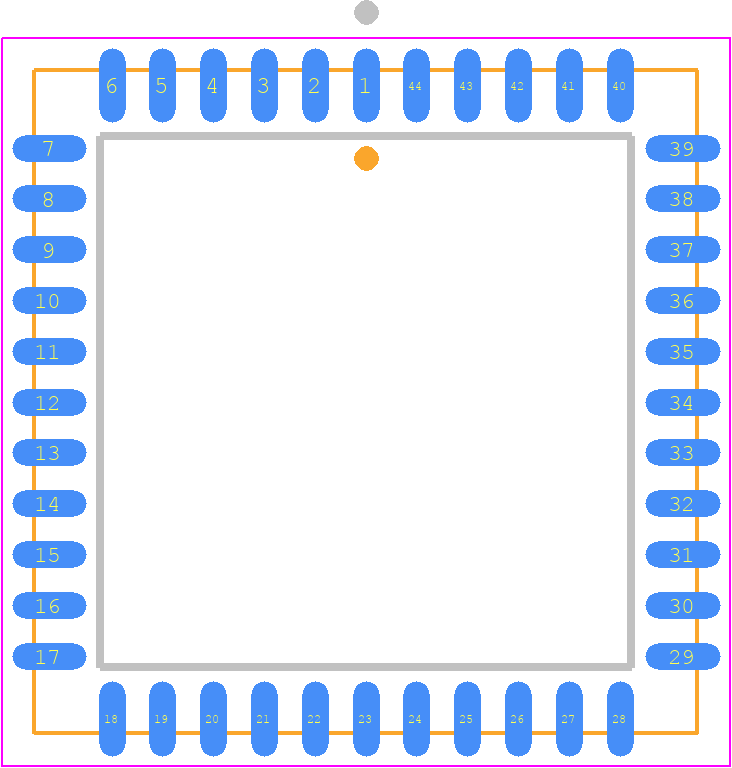

• Package Description:

  LCC-44

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  2 Days

• Date Of Intro:

  1988-01-01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  NO

• Additional Feature:

  OPERATES AT 3.3V SUPPLY @ 1 MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  6805

• Clock Frequency-Max:

  4.2 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e3

• Length:

  16.5862 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  31

• Number of Terminals:

  44

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  250

• Qualification Status:

  Not Qualified

• RAM (bytes):

  176

• ROM (words):

  7744

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  4.57 mm

• Speed:

  2.1 MHz

• Supply Current-Max:

  7 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  HCMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  16.5862 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
