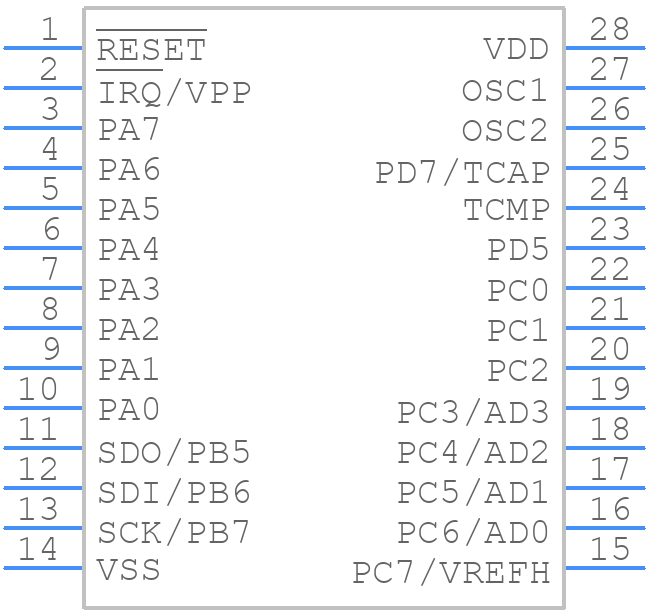

MC68HC705P6ACDW - Motorola

MC68HC705P6ACDW Details

• Manufacturer Part Number:

  MC68HC705P6ACDW

• Part Life Cycle Code:

  Transferred

• Package Description:

  SOIC-28

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Motorola Semiconductor Products

• Has ADC:

  YES

• Additional Feature:

  POWER-SAVING STOP, HALT, AND WAIT MODES, 4-CHANNEL 8-BIT A/D CONVERTER

• Bit Size:

  8

• CPU Family:

  6805

• Clock Frequency-Max:

  4.2 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e0

• Length:

  17.9 mm

• Number of I/O Lines:

  21

• Number of Terminals:

  28

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• RAM (bytes):

  176

• ROM (words):

  4672

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  2.65 mm

• Speed:

  2.1 MHz

• Supply Current-Max:

  7 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  HCMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
