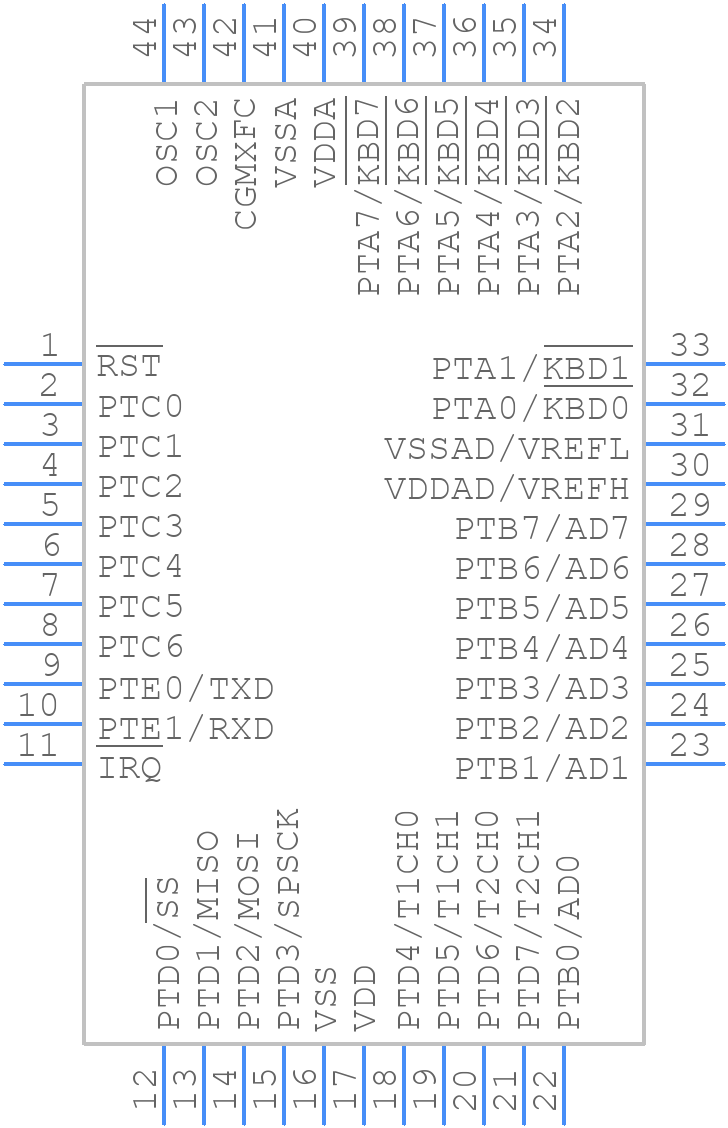

MC68HC908GP32CFB - NXP

MC68HC908GP32CFB Details

• Manufacturer Part Number:

  MC68HC908GP32CFB

• Part Life Cycle Code:

  Obsolete

• Package Description:

  QFP-44

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.15

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  OPERATES AT 3V MIN SUPPLY @ 4.1 MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  68HC08

• Clock Frequency-Max:

  32.8 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G44

• JESD-609 Code:

  e0

• Length:

  10 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of I/O Lines:

  33

• Number of Terminals:

  44

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP44,.39SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  220

• RAM (bytes):

  512

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.45 mm

• Speed:

  8.2 MHz

• Supply Current-Max:

  20 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
