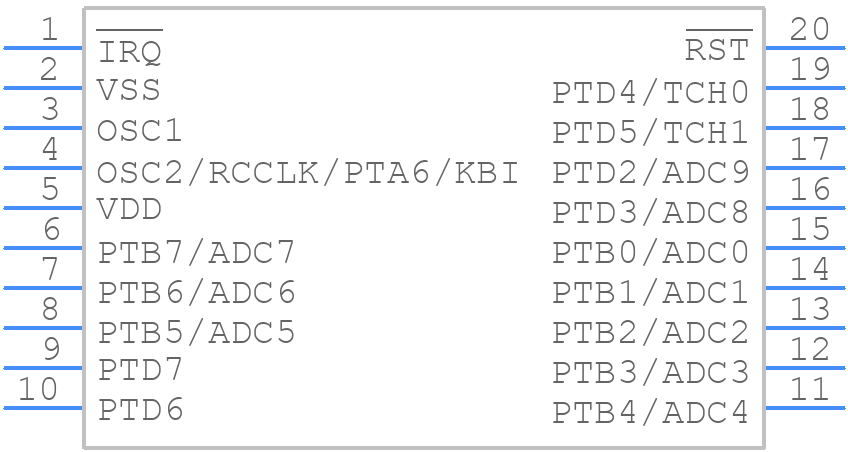

MC68HC908JK3ECDW - NXP

MC68HC908JK3ECDW Details

• Manufacturer Part Number:

  MC68HC908JK3ECDW

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SOIC-20

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.15

• Date Of Intro:

  2016-08-12

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  M68HC08

• Clock Frequency-Max:

  32 MHz

• DAC Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.8 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  2

• Number of I/O Lines:

  15

• Number of Terminals:

  20

• Number of Timers:

  1

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  220

• RAM (bytes):

  128

• ROM (words):

  4096

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.65 mm

• Speed:

  4 MHz

• Supply Current-Max:

  3.5 mA

• Supply Voltage-Max:

  3.3 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
