MC68SEC000AE20 - NXP

Description: Microprocessors - MPU 8/16/32 BIT MPU STATIC

Download MC68SEC000AE20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC68SEC000AE20 - NXP - PCB symbol
click to zoom
PCB Footprints

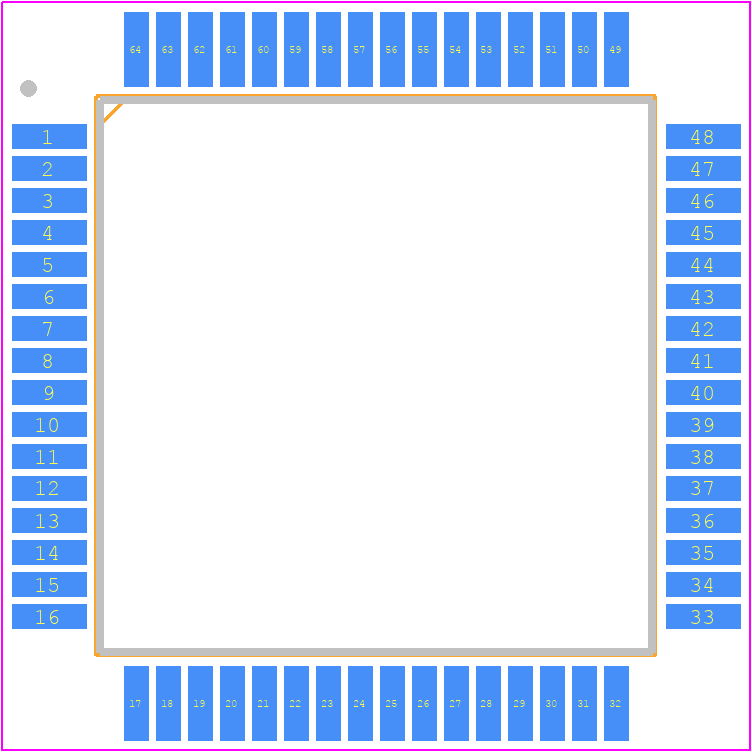

MC68SEC000AE20 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - MC68SEC000AE20
click to zoom
3D Models
MC68SEC000AE20 - NXP - 3D model - Quad Flat Packages - MC68SEC000AE20
click to zoom

MC68SEC000AE20 Details

  • Manufacturer Part Number:

    MC68SEC000AE20

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1988-01-01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Bit Size:

    32

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Speed:

    20 MHz

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

MC68SEC000AE20 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MC68SEC000AE20 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • To ensure reliable communication in a noisy environment, it's recommended to use proper shielding, grounding, and decoupling techniques. Additionally, implementing error detection and correction mechanisms, such as checksums or CRCs, can help detect and correct errors caused by noise.
  • The maximum clock frequency that the MC68SEC000AE20 can support is 20 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the specific application and system design.
  • To configure the MC68SEC000AE20 for low-power operation, you can use the device's power-saving modes, such as the STOP or WAIT modes. Additionally, you can reduce the clock frequency, disable unused peripherals, and optimize the system design to minimize power consumption.
  • For optimal performance and reliability, it's recommended to follow proper PCB layout and design considerations, such as using a solid ground plane, minimizing signal trace lengths, and avoiding signal routing near noise sources. Additionally, ensuring proper decoupling and bypassing of power supplies is crucial.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC68SEC000AE20 Overview

Use the download button to access the MC68SEC000AE20 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC68S, or try a keyword search, such as Microprocessors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
