MC74AC138DG - onsemi

Description: Active LOW Mutually Exclusive Outputs; ACT138 Has TTL Compatible Inputs; Demultiplexing Capability; Multiple Input Enable for Easy Expansion; Outputs Source/Sink 24 mA; These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices. Please see our website at www.onsemi.com for specific Pb-free orderable part numbers, or contact your local ON Semiconductor sales office or representative.

Download MC74AC138DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

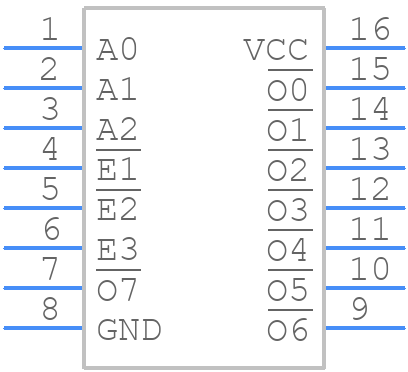

MC74AC138DG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC74AC138DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74AC138DG - onsemi - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74AC138DG Details

  • Manufacturer Part Number:

    MC74AC138DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    3 ENABLE INPUTS

  • Family:

    AC

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    3-LINE TO 8-LINE DECODER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    15 ns

  • Propagation Delay (tpd):

    15 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74AC138DG Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MC74AC138DG is 100 MHz.
  • To ensure signal integrity, use a low-impedance output driver, minimize trace lengths, and use a ground plane to reduce noise and electromagnetic interference (EMI).
  • The recommended power-on sequence is to apply VCC before applying any input signals. This ensures that the device is properly initialized and minimizes the risk of latch-up or damage.
  • Yes, the MC74AC138DG is compatible with 3.3V systems. However, ensure that the input signals are within the recommended voltage range (VIL and VIH) to ensure proper operation.
  • To handle thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device near its maximum junction temperature (TJ) of 150°C.
