MC74AC163DR2G - onsemi

Description: Outputs Source/Sink 24 mA; ACT161 and ACT163 Have TTL Compatible Inputs; Synchronous Counting and Loading; Typical Count Rate of 125 MHz; High-Speed Synchronous Expansion; These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices. Please see our website at www.onsemi.com for specific Pb-free orderable part numbers, or contact your local ON Semiconductor sales office or representative.

Download MC74AC163DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

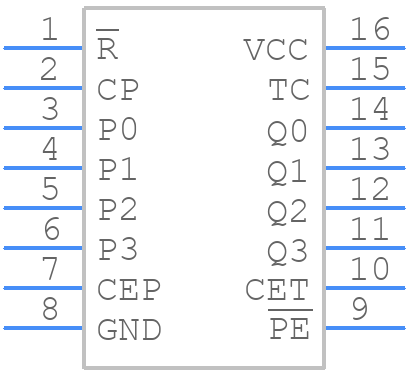

MC74AC163DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC74AC163DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74AC163DR2G - onsemi - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74AC163DR2G Details

  • Manufacturer Part Number:

    MC74AC163DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    TCO OUTPUT

  • Count Direction:

    UP

  • Family:

    AC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    NO

  • Logic IC Type:

    BINARY COUNTER

  • Max Frequency@Nom-Sup:

    60000000 Hz

  • Max I(ol):

    0.012 A

  • Mode of Operation:

    SYNCHRONOUS

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    13.5 ns

  • Propagation Delay (tpd):

    13.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    95 MHz

MC74AC163DR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74AC163DR2G is 2.0V to 6.0V.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within the recommended temperature range of -40°C to 85°C, and that the device is properly heat-sinked to prevent overheating.
  • The maximum clock frequency that the MC74AC163DR2G can handle is 100 MHz.
  • The MC74AC163DR2G is a CMOS device and can be interfaced with other CMOS or TTL devices. Ensure that the voltage levels and logic levels are compatible, and use appropriate pull-up or pull-down resistors as needed.
  • The power consumption of the MC74AC163DR2G depends on the operating frequency and voltage. At 5V and 100 MHz, the typical power consumption is around 20 mW.
