MC74ACT273DWR2G - onsemi

Description: Buffered, Asynchronous Master Reset; Eight Edge-Triggered D Flip-Flops; See MC74AC373 for Transparent Latch Version; See MC74AC374 for 3-State Version; See MC74AC377 for Clock Enable Version; Buffered Common Clock; ACT273 Has TTL Compatible Inputs; Outputs Source/Sink 24 mA; Ideal Buffer for MOS Microprocessor or Memory; Pb-Free Packages are Available

Download MC74ACT273DWR2G Model

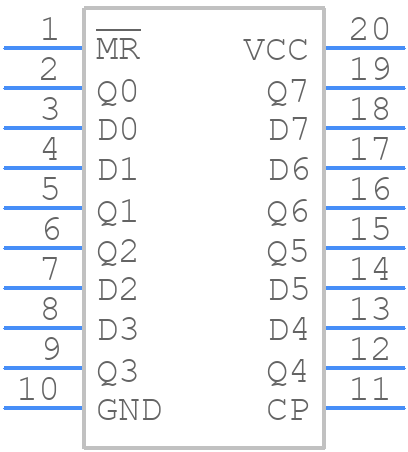

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74ACT273DWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 20 WB CASE 751D-05
click to zoom
3D Models
MC74ACT273DWR2G - onsemi  - 3D model - Small Outline Packages - SOIC 20 WB CASE 751D-05
click to zoom

MC74ACT273DWR2G Details

  • Manufacturer Part Number:

    MC74ACT273DWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-20 WB

  • Pin Count:

    20

  • Manufacturer Package Code:

    751D-05

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.4

  • Family:

    ACT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    D FLIP-FLOP

  • Max Frequency@Nom-Sup:

    125000000 Hz

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    12 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    7.5 mm

  • fmax-Min:

    125 MHz

MC74ACT273DWR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74ACT273DWR2G is 4.5V to 5.5V.
  • It is recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up conditions.
  • The maximum frequency of operation for the MC74ACT273DWR2G is 100 MHz.
  • It is recommended to use a 0.1uF ceramic capacitor between the VCC pin and the GND pin, and to place the capacitor as close to the device as possible. This helps to reduce noise and ensure stable operation.
  • The maximum current that the MC74ACT273DWR2G can sink or source is 24mA.
