MC74F139N - Motorola

Description: DUAL 1-OF-4 DECODER

Download MC74F139N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

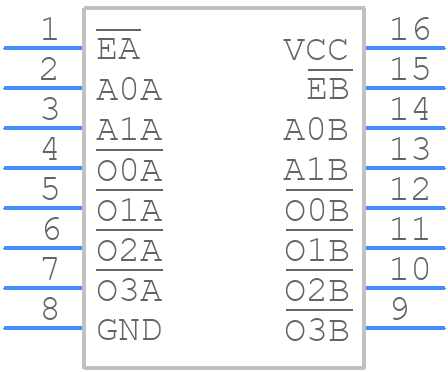

Symbol
MC74F139N - Motorola - PCB symbol
click to zoom
PCB Footprints
MC74F139N - Motorola PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - CASE 648–08
click to zoom
3D Models
MC74F139N - Motorola - 3D model - Dual-In-Line Packages - CASE 648–08
click to zoom

MC74F139N Details

  • Manufacturer Part Number:

    MC74F139N

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    648-08

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Motorola Semiconductor Products

  • YTEOL:

    0

  • Family:

    F/FAST

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.175 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    2-LINE TO 4-LINE DECODER

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    20 mA

  • Propagation Delay (tpd):

    9 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.44 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MC74F139N Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74F139N is 4.5V to 5.5V, with a typical voltage of 5V.
  • When the input pins are not in use, they should be tied to a valid logic level (either VCC or GND) to prevent unwanted switching and reduce power consumption.
  • The maximum frequency of operation for the MC74F139N is typically around 100 MHz, but this can vary depending on the specific application and operating conditions.
  • Proper thermal management can be achieved by providing adequate heat sinking, using a thermally conductive package, and ensuring good airflow around the device.
  • The MC74F139N is a 5V device, but it can be used with 3.3V logic with proper level shifting or voltage translation. However, this may require additional circuitry and design considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74F139N Overview

Use the download button to access the MC74F139N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74F, or try a keyword search, such as Decoder/Drivers
