MC74HC02ADTR2G - onsemi

Description: Operating Voltage Range: 2.0 to 6.0 V; Output Drive Capability: 10 LSTTL Loads; Outputs Directly Interface to CMOS, NMOS, and TTL; Low Input Current: 1.0 mA; High Noise Immunity Characteristic of CMOS Devices; In Compliance with the Requirements Defined by JEDEC Standard No. 7A; Chip Complexity: 40 FETs or 10 Equivalent Gates; Pb-Free Packages are Available

Download MC74HC02ADTR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

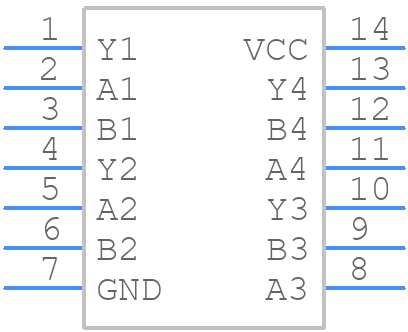

MC74HC02ADTR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
MC74HC02ADTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14 CASE 948G
click to zoom
3D Models
MC74HC02ADTR2G - onsemi - 3D model - Small Outline Packages - TSSOP14 CASE 948G
click to zoom

MC74HC02ADTR2G Details

  • Manufacturer Part Number:

    MC74HC02ADTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.35

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NOR GATE

  • Max I(ol):

    0.0052 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    22 ns

  • Propagation Delay (tpd):

    110 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

MC74HC02ADTR2G Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the MC74HC02ADTR2G is typically around 100 MHz, but this can vary depending on the specific application and operating conditions.
  • To ensure proper operation, the MC74HC02ADTR2G should be powered with a stable voltage supply between 2.0V and 6.0V, with a recommended operating voltage of 5.0V. Additionally, decoupling capacitors should be used to filter out noise and ensure stable operation.
  • The MC74HC02ADTR2G can sink or source up to 25mA of current per output, but this should be limited to 10mA per output to ensure reliable operation.
  • The MC74HC02ADTR2G has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within a temperature range of -40°C to 85°C, and thermal management techniques such as heat sinks or thermal interfaces may be necessary for high-power applications.
  • The MC74HC02ADTR2G has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device to prevent damage. A minimum of 2kV human body model (HBM) and 200V machine model (MM) ESD protection is recommended.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74HC02ADTR2G Overview

Use the download button to access the MC74HC02ADTR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74H, or try a keyword search, such as Gates
