MC74HC08AN - onsemi

Description: Quad 2i/p AND gate,MC74HC08AN DIP14 2-6V

Download MC74HC08AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC74HC08AN - onsemi - PCB symbol
click to zoom
PCB Footprints

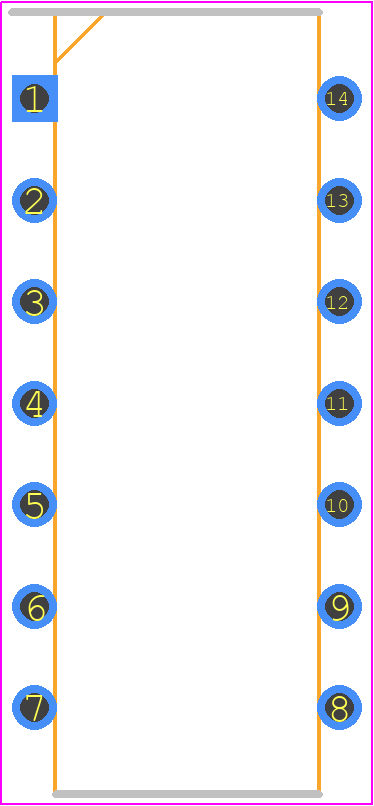

MC74HC08AN - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP–14 N SUFFIX CASE 646–06 ISSUE L
click to zoom
3D Models
MC74HC08AN - onsemi - 3D model - Dual-In-Line Packages - PDIP–14 N SUFFIX CASE 646–06 ISSUE L
click to zoom

MC74HC08AN Details

  • Manufacturer Part Number:

    MC74HC08AN

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    18.86 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    AND GATE

  • Max I(ol):

    0.0052 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    235

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    22 ns

  • Propagation Delay (tpd):

    110 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.69 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MC74HC08AN Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MC74HC08AN is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper operation, the MC74HC08AN should be powered with a stable voltage supply between 2.0 V and 6.0 V, with a recommended operating voltage of 5.0 V. Additionally, decoupling capacitors should be used to filter out noise and ensure stable power supply.
  • The input voltage threshold for the MC74HC08AN is typically around 0.8 V to 2.0 V, depending on the operating voltage. This means that an input voltage above 2.0 V is considered a logical high, while an input voltage below 0.8 V is considered a logical low.
  • Yes, the MC74HC08AN can be used in a 3.3 V system, as it is specified to operate from 2.0 V to 6.0 V. However, the output voltage levels may not be as high as those in a 5.0 V system, and the noise margin may be reduced.
  • When the output of the MC74HC08AN is not being used, it is recommended to tie it to a pull-up or pull-down resistor to prevent it from floating. This can help prevent unwanted switching and reduce power consumption.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74HC08AN Overview

Use the download button to access the MC74HC08AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74H, or try a keyword search, such as Gates
