The recommended operating voltage range for the MC74HC112ADG is 2V to 6V, with a typical voltage of 5V.
Unused inputs of the MC74HC112ADG should be tied to a fixed logic level (VCC or GND) to prevent floating inputs and ensure proper device operation.
The maximum clock frequency that the MC74HC112ADG can handle is 35 MHz, but this can vary depending on the operating voltage and load capacitance.
Yes, the MC74HC112ADG can be used in a 3.3V system, but the output voltage will be limited to 3.3V, and the device may not be able to drive heavy loads.
To ensure proper power-up and initialization, the VCC pin should be ramped up slowly (typically within 1 ms) and the input signals should be stable before the clock signal is applied.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC74HC112ADG Overview

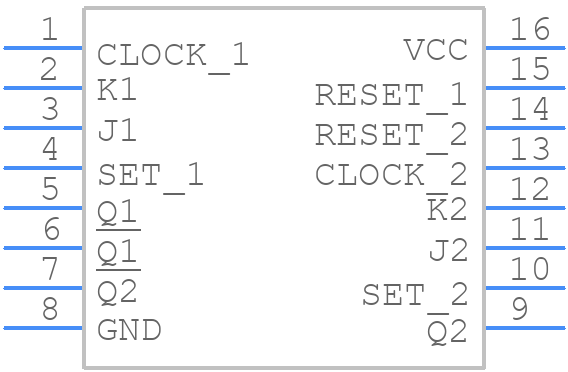

Use the download button to access the MC74HC112ADG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74H,
or try a keyword search, such as FF/Latches
