MC74HC138ADG - onsemi

Description: Chip Complexity: 100 FETs or 29 Equivalent Gates; In Compliance with the Requirements Defined by JEDEC Standard No. 7A; Output Drive Capability: 10 LSTTL Loads; Outputs Directly Interface to CMOS, NMOS and TTL; Low Input Current: 1.0 mA; High Noise Immunity Characteristic of CMOS Devices; Operating Voltage Range: 2.0 to 6.0 V; Pb-Free Packages are Available*

Download MC74HC138ADG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

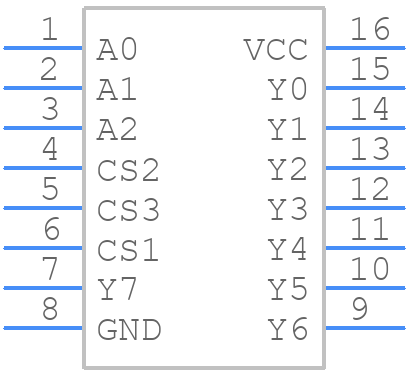

Symbol
MC74HC138ADG - onsemi - PCB symbol
click to zoom
PCB Footprints
MC74HC138ADG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
MC74HC138ADG - onsemi - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

MC74HC138ADG Details

  • Manufacturer Part Number:

    MC74HC138ADG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Family:

    HC/UH

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    3-LINE TO 8-LINE DECODER

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    41 ns

  • Propagation Delay (tpd):

    205 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MC74HC138ADG Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the MC74HC138ADG is typically 25 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure that the output signals are not distorted or skewed, it is recommended to use a low-impedance output driver, such as a buffer or a line driver, and to keep the output lines as short as possible to minimize signal degradation.
  • The recommended power-on reset sequence for the MC74HC138ADG is to apply power to the VCC pin first, followed by the input signals, and then the output enable (OE) signal. This ensures that the device is properly initialized and that the outputs are in a known state.
  • If multiple outputs are enabled simultaneously, it is recommended to use an external resistor or current-limiting device to prevent excessive current draw and potential damage to the device. Additionally, the outputs should be designed to handle the resulting current and voltage conditions.
  • The maximum capacitive load that the MC74HC138ADG can drive is typically around 100 pF, but this can vary depending on the specific application and operating conditions. It is recommended to consult the datasheet and application notes for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC74HC138ADG Overview

Use the download button to access the MC74HC138ADG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74H, or try a keyword search, such as Decoder/Drivers
