MC74HC151ADTR2G - onsemi

Description: Output Drive Capability: 10 LSTTL Loads; Outputs Directly Interface to CMOS, NMOS, and TTL; Operating Voltage Range: 2 to 6 V; Low Input Current: 1 A; High Noise Immunity Characteristic of CMOS Devices; These are PbFree Devices

Download MC74HC151ADTR2G Model

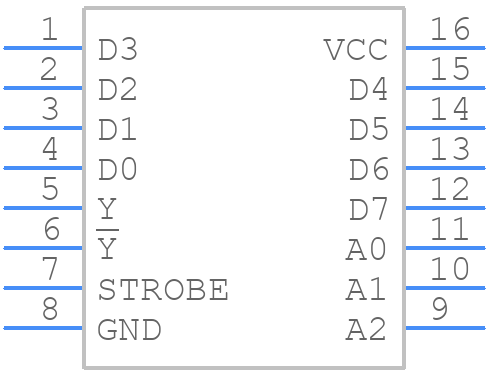

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MC74HC151ADTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−16/1
click to zoom
3D Models
MC74HC151ADTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP−16/1
click to zoom

MC74HC151ADTR2G Details

  • Manufacturer Part Number:

    MC74HC151ADTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.35

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    MULTIPLEXER

  • Max I(ol):

    0.004 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Inputs:

    8

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    56 ns

  • Propagation Delay (tpd):

    185 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MC74HC151ADTR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the MC74HC151ADTR2G is 2V to 6V.
  • To ensure proper operation, the MC74HC151ADTR2G requires a stable power supply with a decoupling capacitor (e.g., 0.1uF) connected between VCC and GND, as close to the device as possible.
  • The maximum frequency of operation for the MC74HC151ADTR2G is 25MHz.
  • The enable inputs (E1 and E2) must be connected to a valid logic level (either VCC or GND) to ensure proper operation. Leaving them floating can cause unpredictable behavior.
  • The MC74HC151ADTR2G can sink or source up to 25mA of current per output.
