Part Image

MC74HC163ADG - onsemi

Description: Counter ICs Presettable Counter

Download ECAD Model

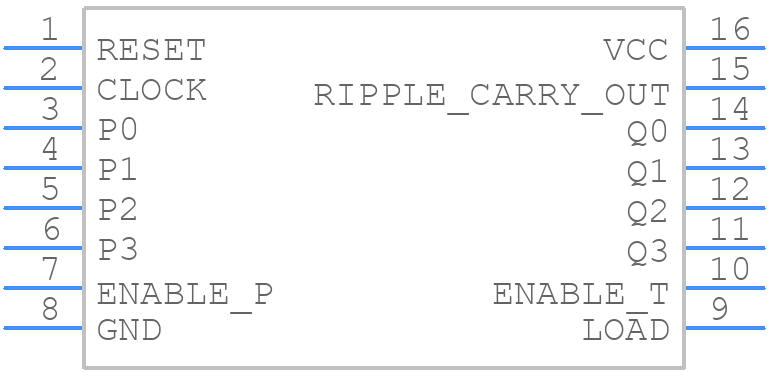

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

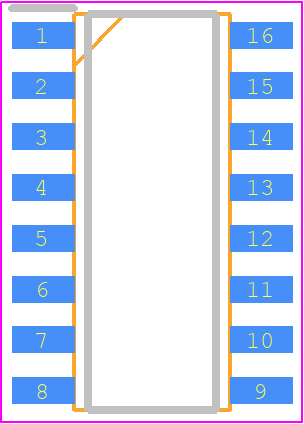

MC74HC163ADG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - ---soic -16
click to zoom

3D Models

MC74HC163ADG - onsemi  - 3D model - Small Outline Packages - ---soic -16
click to zoom

MC74HC163ADG Details

  • Manufacturer Part Number:

    MC74HC163ADG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • Risk Rank:

    6.59

  • Samacsys Modified On:

    2020-07-30 06:25:42

  • YTEOL:

    5.5

  • Count Direction:

    UP

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BINARY COUNTER

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Max I(ol):

    0.004 A

  • Mode of Operation:

    SYNCHRONOUS

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    2/6 V

  • Propagation Delay (tpd):

    185 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Counters

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    28 MHz

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

MC74HC163ADG Overview

Use the download button to access the MC74HC163ADG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC74H, or try a keyword search, such as Counters

Parts related to MC74HC163ADG

Showing 0 results

MC74HC163ADG Alternates

Showing results

Image Part Number Model
Part Image CD74HC163M96E4 Rochester Electronics LLC

Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16

Part Image SN74HC163DG4 Texas Instruments

4-Bit Synchronous Binary Counters 16-SOIC -40 to 85

Part Image M74HC163M1 STMicroelectronics

HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, MICRO, PLASTIC, DIP-16

Part Image 74HC163D-T NXP Semiconductors

IC HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, SOT-109, SO-16, Counter

Part Image MC74HC163ADR2 onsemi

HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, SOIC-16

For a full list of alternate parts for MC74HC163ADG, check out Findchips.com
