MC74HC164ADR2G-Q - onsemi

Description: Outputs Directly Interface to CMOS, NMOS, and TTL; Output Drive Capability: 10 LSTTL Loads; Chip Complexity: 244 FETs or 61 Equivalent Gates; In Compliance with the Requirements Defined by JEDEC Standard No. 7A; High Noise Immunity Characteristic of CMOS Devices; Low Input Current: 1 mA; Operating Voltage Range: 2 to 6 V; Pb-Free Packages are Available

Download MC74HC164ADR2G-Q Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MC74HC164ADR2G-Q model

Email notifications will be applied after download.

Send part feedback

Symbol

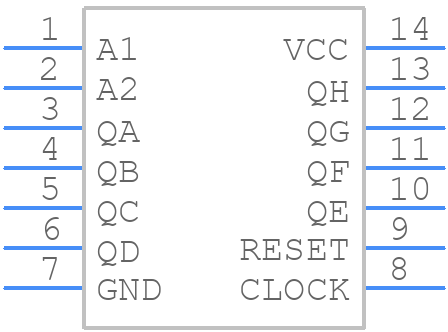

MC74HC164ADR2G-Q - onsemi - PCB symbol

PCB Footprints

MC74HC164ADR2G-Q - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−14 NB CASE 751A−03 ISSUE L

3D Models

MC74HC164ADR2G-Q - onsemi - 3D model - Small Outline Packages - SOIC−14 NB CASE 751A−03 ISSUE L

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC74HC164ADR2G-Q
Part Number MC74HC164ADR2G-Q
Manufacturer onsemi
Pin Count 14
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC−14 NB CASE 751A−03 ISSUE L
Released Date Sep 20, 2024
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

MC74HC164ADR2G-Q Details

Manufacturer Part Number:
MC74HC164ADR2G-Q
Part Life Cycle Code:
Active
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
Logic IC Type:
SERIAL IN PARALLEL OUT

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MC74HC164ADR2G-Q Overview

Use the download button to access the MC74HC164ADR2G-Q schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MC74H, or try a keyword search, such as Shift Registers
