MC74HC244ADTR2G-Q - onsemi

Description: Output Drive Capability: 15 LSTTL Loads; Operating Voltage Range: 2 to 6 V; Outputs Directly Interface to CMOS, NMOS, and TTL; Low Input Current: 1 mA; High Noise Immunity Characteristic of CMOS Devices; In Compliance with the Requirements Defined by JEDEC Standard No. 7A; Chip Complexity: 136 FETs or 34 Equivalent Gates; Pb-Free Packages are Available*

Download MC74HC244ADTR2G-Q Model

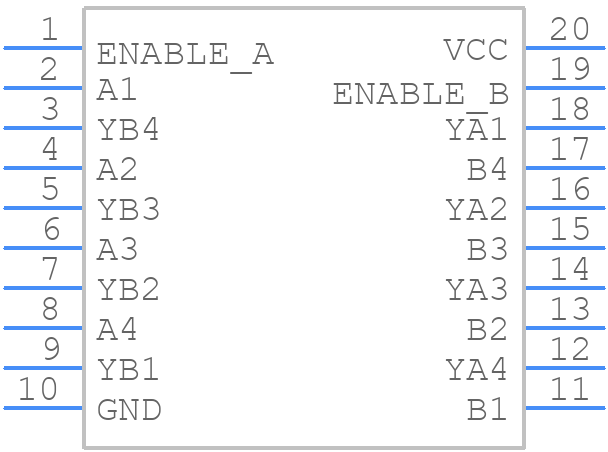

Schematic
